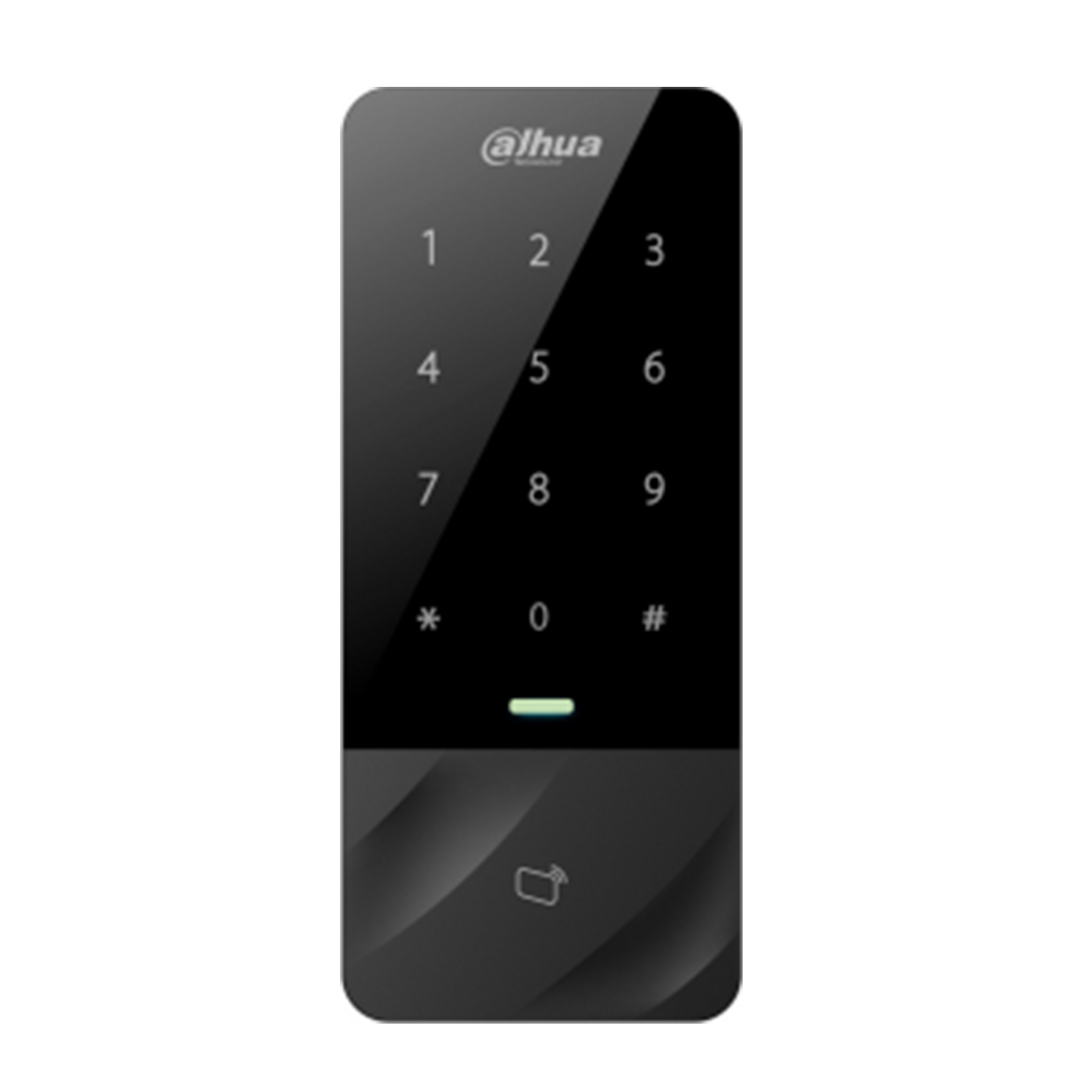

Dahua ASI1201E-D (EM) RFID Standalone Reader
Dahua ASI1201E-D (EM) RFID Standalone Reader - Image 2

Dahua ASI1201E-D (EM) RFID Standalone Reader

Category:
  • Support 30,000 valid cards & 60,000 records.
  • Support IC card (Mifare card) recognition in the non-contact way.
  • Support card, password and combination.
  • Support TCP/IP connection and auto registration.
  • Wiegand or RS-485 interface to reader.
  • Door time out alarm, intrusion alarm, duress alarm, blocklist alarm and tamper alarm.
  • Anti-passback, multi-card open.
  • Water-proof design.
  • Support 128 efficient time and holiday schedules.
  • Watch dog function ensure device free from halting.
  • One card per user.
System
Main Processor 32 Bit
Input/Output Ports
Input Door sensor x 1, Exit button x 1
Output Relay x 1 (Door lock,)
Reader Reader x 1
Card Read
Read Format 13.56MHz
Read Range 1cm–2cm (max.)
Response Time <0.1s
Capacity
Cardholders 30,000
Events 60,000
Function
User Management General, VIP, Guest, Patrol, Black list, Duress
Alarm Function Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm
Period Setting Support 128 groups of schedule, 128 groups of periods and 128 groups of holiday periods
Interface
To PC RJ45(10/100M)
To Reader Wiegand26/34, RS485
General
Ingress Protection IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
RTC Yes
Beep Tone Buzzer
Keyboard Sensitive touch keypad with blue backlight
Power Supply DC 9-15V/100mA
Operating Temperature -10°C to +55°C
Working Humidity 10%RH–90%RH (no-condensation)
Dimension(W×D×H) 62.0mm×142.0mm×23.0mm
Weight 0.5kg
Working Environment Outdoor
Certificates
CE Yes
FCC Yes
Type Download
Datasheet
  • 1 x Dahua ASI1201E-D (EM) RFID Standalone Reader
