- Plastic housing
- Up to 2MP,1920×1080@30fps
- S+265/H.265/H.264B/H.264M/H.264H
- Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
- IR range up to 30m
- Built-in Mic
- Operating conditions -30℃~60℃(-22℉~140℉), ≤95%RH
- PoE:IEEE 802.3af,Max. 3W
AK Series, Color Maker

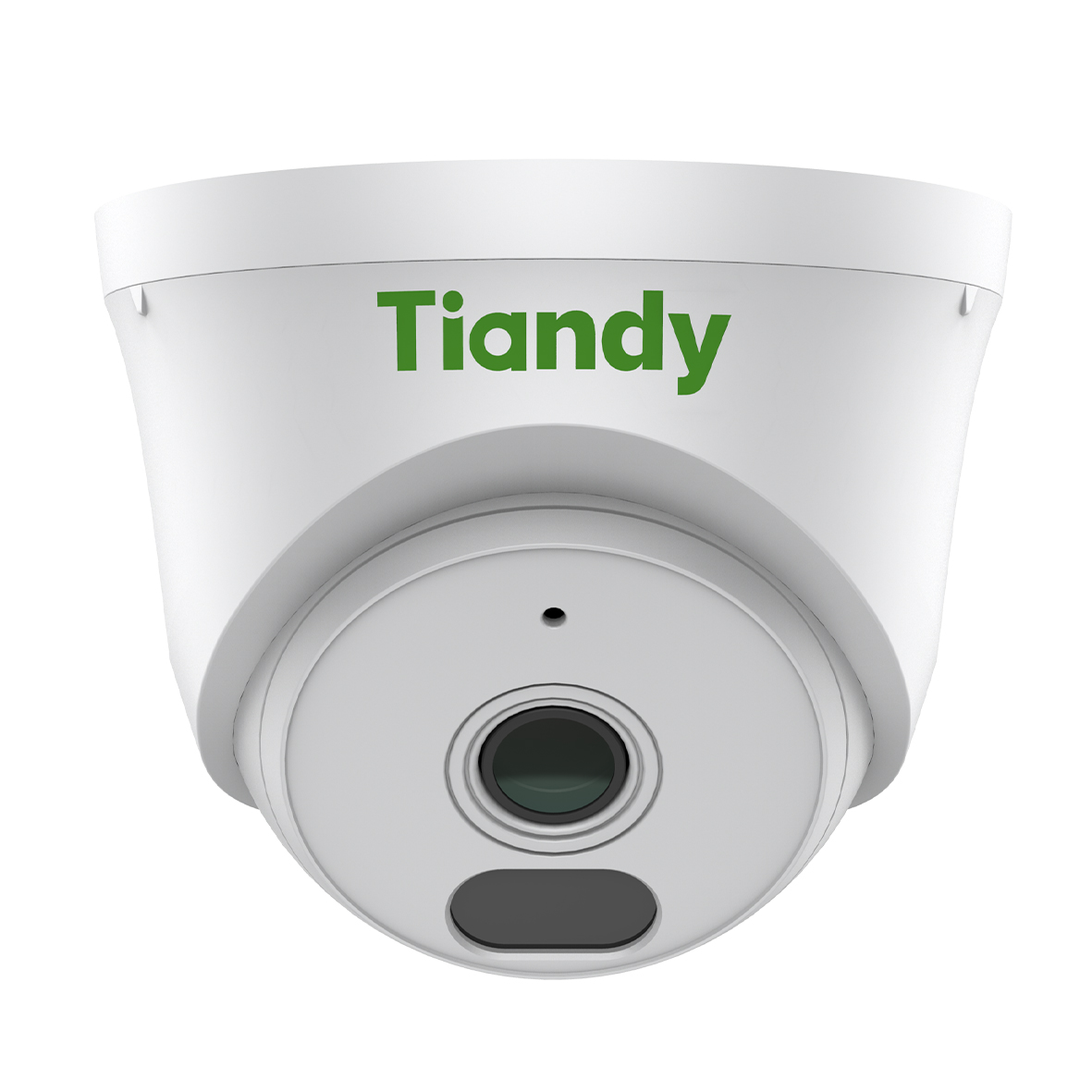

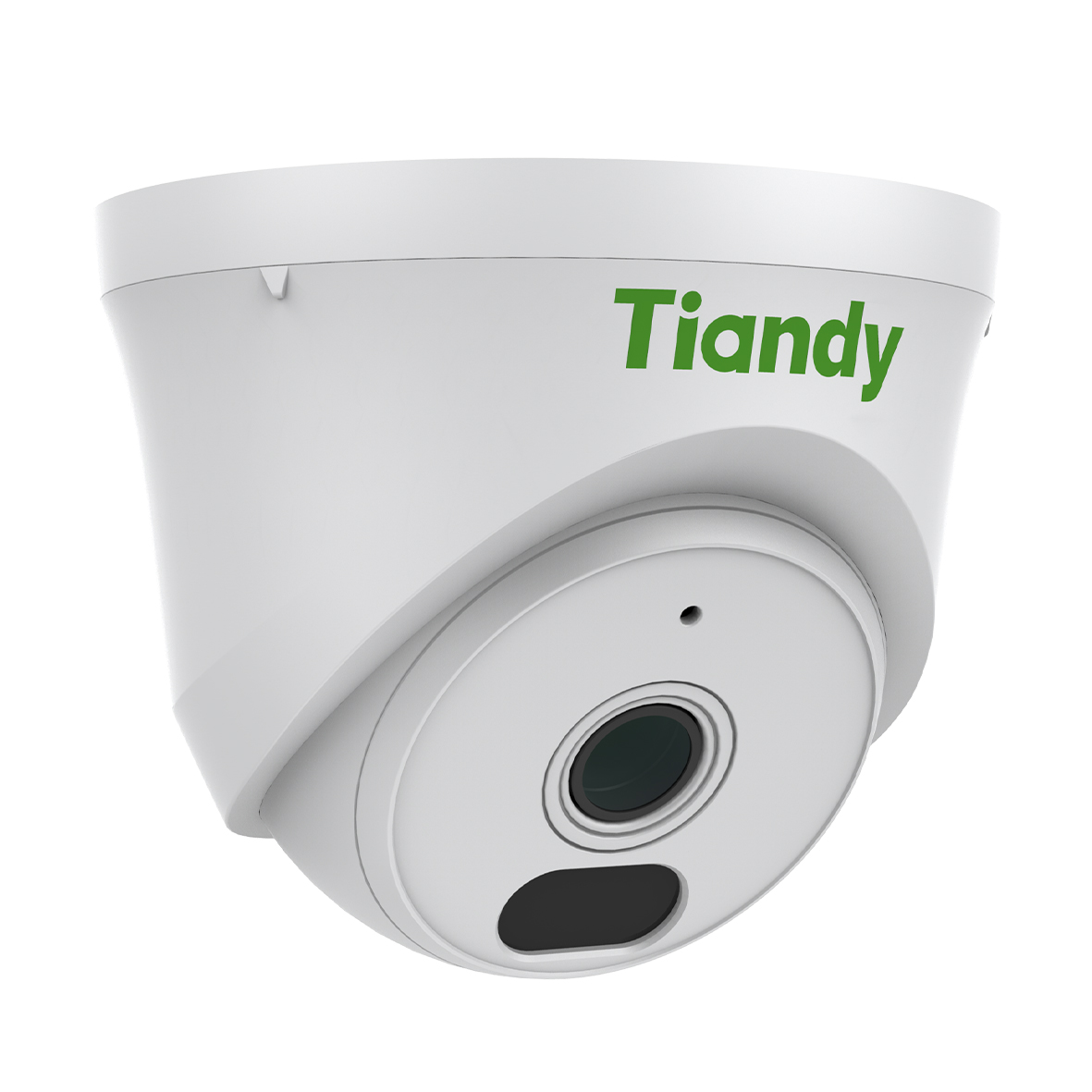

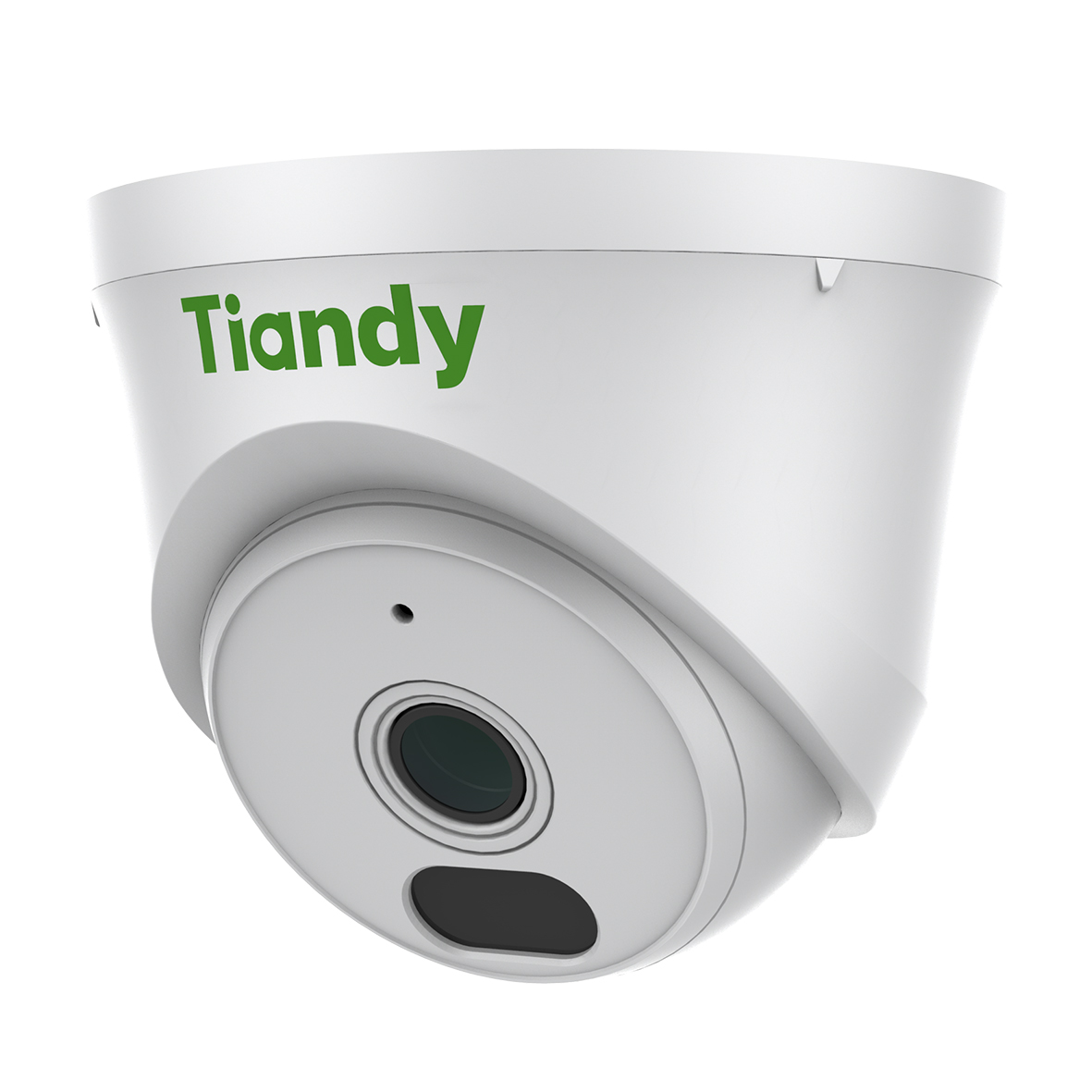

Tiandy TC-C320N-AK/I3W/E/Y/2.8MM/V2.0 2MP Color Maker IP Network PoE Built-in Mic Dome Camera (2.8mm)
| Camera | |||||
| Image Sensor | 1/3″CMOS | ||||
| Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0 Lux with IR | ||||
| Shutter Time | 1s~1/100000s | ||||
| Day & Night | IR-cut filter with auto switch (ICR) | ||||
| Smart IR | Yes | ||||
| WDR | DWDR | ||||
| S/N | >47.8dB | ||||
| Angle Adjustment | 0~340°(P); 0~75°(T); 0~360°(R) | ||||
| Lens | |||||
| Lens Type | Fixed focal lens | ||||
| Focal Length | 2.8mm | ||||
| Lens Mount | M12 | ||||
| Aperture Range | F1.6 | ||||
| Aperture Type | Fixed | ||||
| Field of View | 94.4°(H); 53.2°(V); 108.2°(D) | ||||
| DORI Distance | Detect:41.48m Observe:16.46m Recognize:8.3m Identify:4.1m |
||||
| Illuminator | |||||
| IR LEDs | 2 | ||||
| IR Distance | Up to 30m | ||||
| Wavelength | 850nm | ||||
| White LEDs | 2 | ||||
| White Light Distance | Up to 15m | ||||
| Compression Standard | |||||
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H | ||||
| Video Bit Rate | 32k~4Mbps | ||||
| Audio Compression | G.711A/G.711U | ||||
| Audio Sampling Rate | 8kHz | ||||
| Image | |||||
| Max. Resolution | 2MP,1920×1080@30fps | ||||
| Main Stream | PAL:25fps(1920×1080, 1280×720, 704×576, 640×480) NTSC:30fps(1920×1080, 1280×720, 704×480, 640×480) |
||||
| Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| AGC | Yes | ||||
| 3D DNR | Yes | ||||
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
||||
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48 |
||||
| Privacy Mask | 4 black static areas | ||||
| Defog | Yes | ||||
| Feature | |||||
| General Alarm | Motion Detection | ||||
| Exceptions Alarm | IP Address Conflict | ||||
| Network | |||||
| Protocols | HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; Telnet; Unicast; RTSP | ||||
| System Compatibility | ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP | ||||
| Remote Connection | ≤2 | ||||
| Client | Easy7 VMS | ||||
| Web | IE 10+; Firefox 52+; Edge 89+; Safari 11+; Chrome 57+ | ||||
| Interface | |||||
| Communication Interface | 1×RJ-45 (10/100 Base-T) | ||||
| Built-in Mic | Yes | ||||
| General | |||||
| Web Client Language | English | ||||
| Operating Temperature | -30℃~60℃(-22℉~140℉) | ||||
| Operating Humidity | ≤95%RH | ||||
| Storage Temperature | -30℃~60℃(-22℉~140℉) | ||||
| Storage Humidity | 10%~95%RH(non-condensing) | ||||
| Power Supply | PoE:IEEE 802.3af,Max. 3W | ||||
| Protection | Surge4000V; ESD6000V | ||||
| Boundary Dimensions | 94(L)94(W)78(H)mm | ||||
| Package Dimensions | 105(L)105(W)85(H)mm | ||||
| Gross Weight | 0.17kg | ||||
- 2MP
- IR range up to 30m
- Built in PoE
- Built in MIC
- Color Maker
