- Metal+Plastic Housing
- Up to 2688X1520@25fps
- S+265/H.265/H.264
- Min. illumination Color: 0.02Lux@F1.6
- 2 Warm lights, 15m
- Smart IR, IR Range: 50m
- Built-in Mic
- Operating Conditions -30°~60°, 0~95% RH
- Support tripwire and perimeter
- POE
- IP67
Color Maker, SK Series

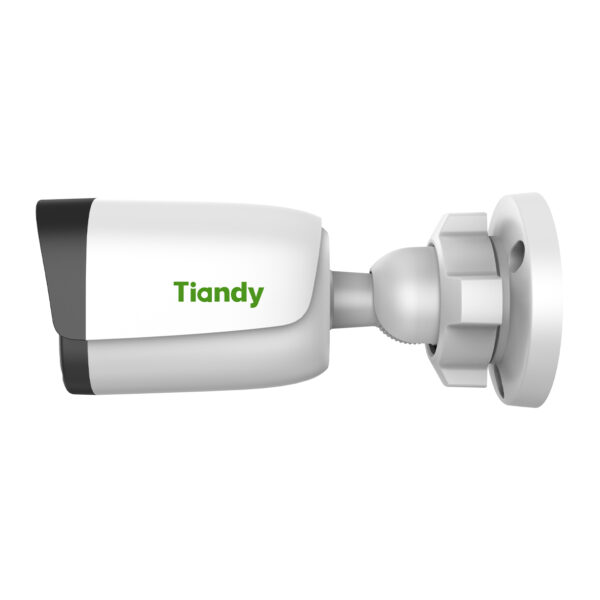

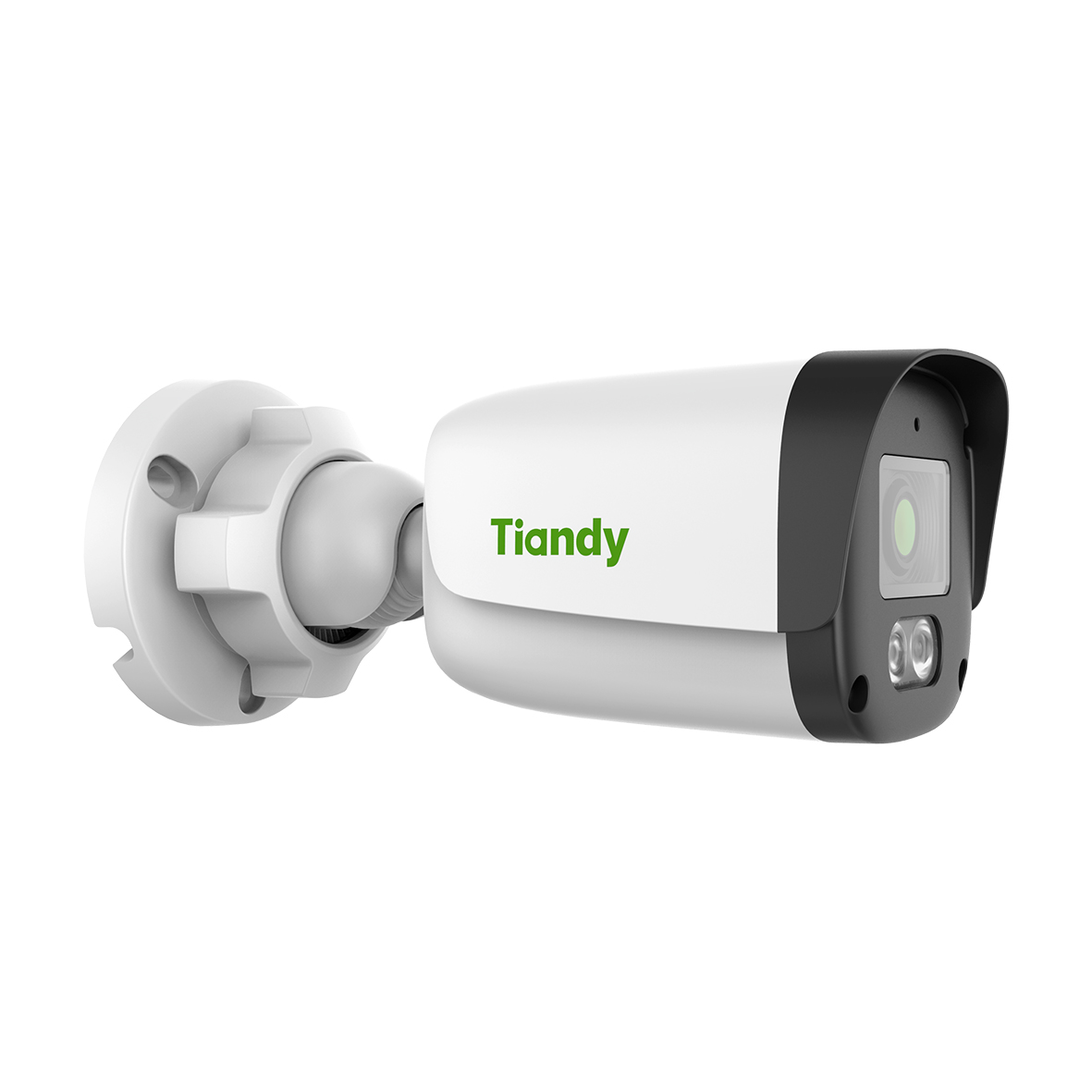

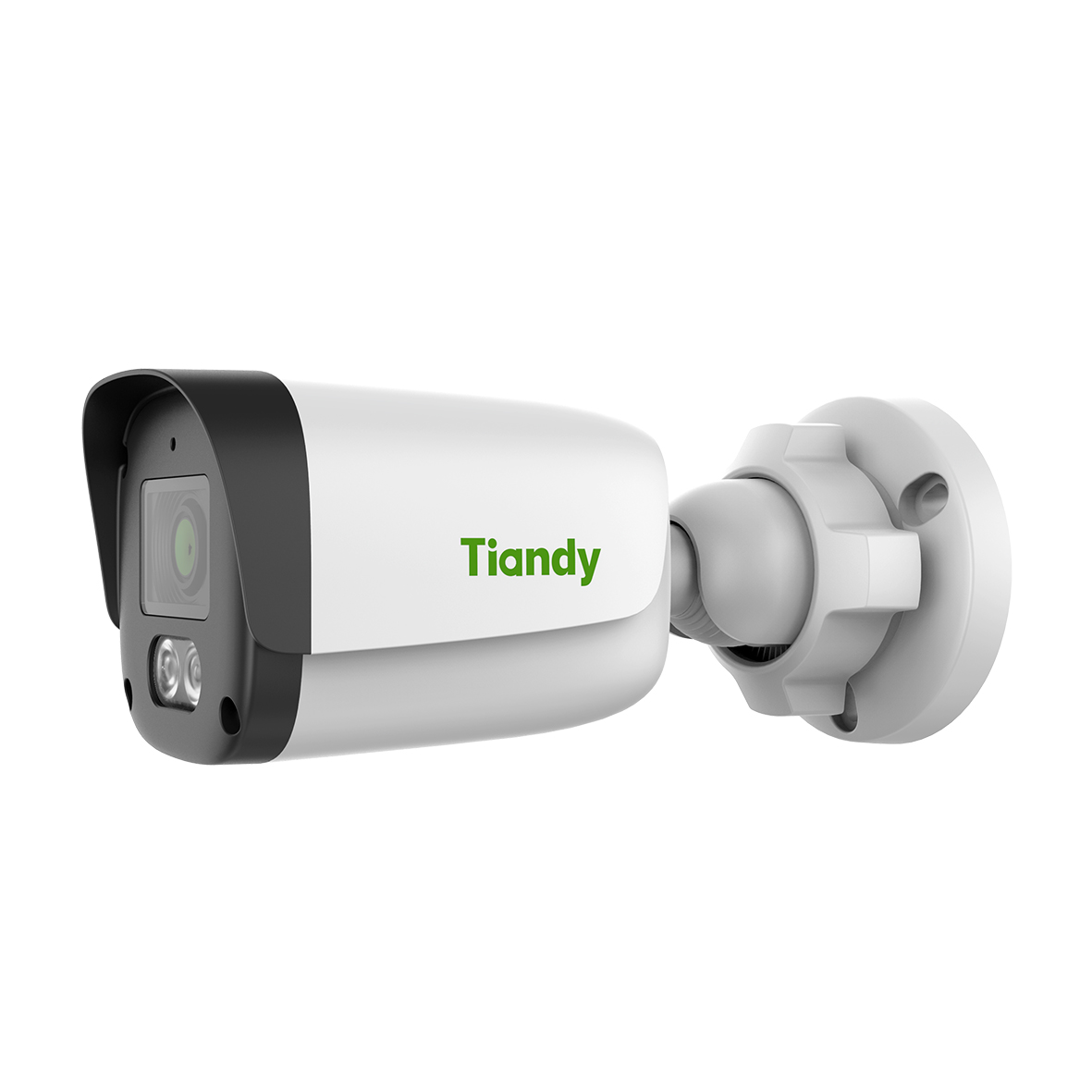

Tiandy TC-C34QN-I5W/E/Y/2.8MM/V4.2 4MP Color Maker IP Network PoE Built-in Mic Bullet Camera (2.8mm)
| Camera | |||||
| Image Sensor | 1/2.9″CMOS | ||||
| Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0 Lux with IR | ||||
| Shutter Time | 1s-1/100000s | ||||
| Day & Night | IR-cut filter with auto switch (ICR) | ||||
| WDR | 120dB | ||||
| S/N | >40dB | ||||
| Angle Adjustment | 0-360°;0-80°;0-360° | ||||
| Lens | |||||
| Lens Type | Fixed | ||||
| Focal Length | 2.8mm | ||||
| Lens Mount | M12 | ||||
| Aperture Range | F1.6,Fixed | ||||
| Field of View | 100.1°(H);54.3°(V);113.9°(D) | ||||
| DORI Distance | W: Detect:56.0m Observe:22.2m Recognize:11.2m Identify:5.6m |
||||
| Illuminator | |||||
| IR LEDs | 4 | ||||
| IR Distance | Up to 50m | ||||
| Wavelength | 850nm | ||||
| White LEDs | 2 | ||||
| Whitelight Distance | Up to 15m | ||||
| Compression Standard | |||||
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H | ||||
| Video Bit Rate | 32Kbps~6Mbps | ||||
| Audio Compression | G.711A/G.711U/ADPCM_D | ||||
| Audio Sampling Rate | 8kHz/32kHz/48kHz | ||||
| Image | |||||
| Max. Resolution | 2688×1520@25fps | ||||
| Main Stream | PAL:25fps(2688X1520,2560×1440,2304×1296,1920×1080,1280×720) NTSC:24fps(2688X1520,2560×1440) 30fps(2304×1296,1920×1080,1280×720) |
||||
| Sub Stream | PAL:25fps(704×576,704×288,352×288,640×360) NTSC:30fps(704×480,704×240,352×240,640×360) |
||||
| Third Stream | N/A | ||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| AGC | Yes | ||||
| 3D DNR | Yes | ||||
| White Balance | Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance |
||||
| ROI | 8 regions | ||||
| Corridor mode | N/A | ||||
| EIS | N/A | ||||
| OSD | 1region;16*16/32*32/48*48/64*64 | ||||
| Picture Overlay | N/A | ||||
| Privacy Mask | 4 regions | ||||
| Defog | Yes | ||||
| Feature | |||||
| Alarm Trigger | Motion Detection; Mask Alarm;IP Address Conflict | ||||
| Linkage Method | trigger warmlight;trigger capture | ||||
| Video Analytics | Tripwire;Perimeter | ||||
| Rules of behavior analyse in 1 scene | 2 | ||||
| Early Warning(EW) | N/A | ||||
| Auto-Tracking | N/A | ||||
| Face Mode | N/A | ||||
| Face Capture Performance | N/A | ||||
| Network | |||||
| ANR | N/A | ||||
| Protocols | HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;DHCP;DNS;DDNS;Easy DDNS;NTP;QoS;IPv4;SSH;Unicast;RTSP;FTP |
||||
| System Compatibility | P2P(Mutually exclusive with Profile G);onvif Profile S/T;CGI;MIL STONE | ||||
| Remote Connection | ≤2 | ||||
| Client | Easy7 Smart Client | ||||
| Mobile Client | EasyLive Plus | ||||
| Web | IE 10+;Firefox 52+;Edge 89+;Safari 11+;Chrome 57+ | ||||
| Interface | |||||
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port | ||||
| Audio I/O | N/A | ||||
| Alarm I/O | N/A | ||||
| Built-In Mic | Yes | ||||
| Built-In Speaker | N/A | ||||
| Reset Button | N/A | ||||
| On-board storage | N/A | ||||
| Additional Interfaces | N/A | ||||
| General | |||||
| Web Client Language | 19languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/He brew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian |
||||
| Operating Temperature | -30°C-60°C | ||||
| Operating Humidity | 0-95% | ||||
| Storage Temperature | -30°C-60°C | ||||
| Storage Humidity | 0-95%(non-condensing) | ||||
| Power Supply | DC12V±25%,MAX 6.5W;POE 802.3af,MAX 7W | ||||
| Protection | Surge protection 2000V;Lightning proof 6000V;IP67 | ||||
| Boundary Dimensions | 164(L)73(W)73(H)mm | ||||
| Package Dimensions | 180(L)90(W)95(H)mm | ||||
| Gross Weight | 0.3kg | ||||
| Net Weight | 0.25kg | ||||
- 4MP
- IR range up to 50m
- 2 Warm Lights
- Built in PoE
- Built in MIC
