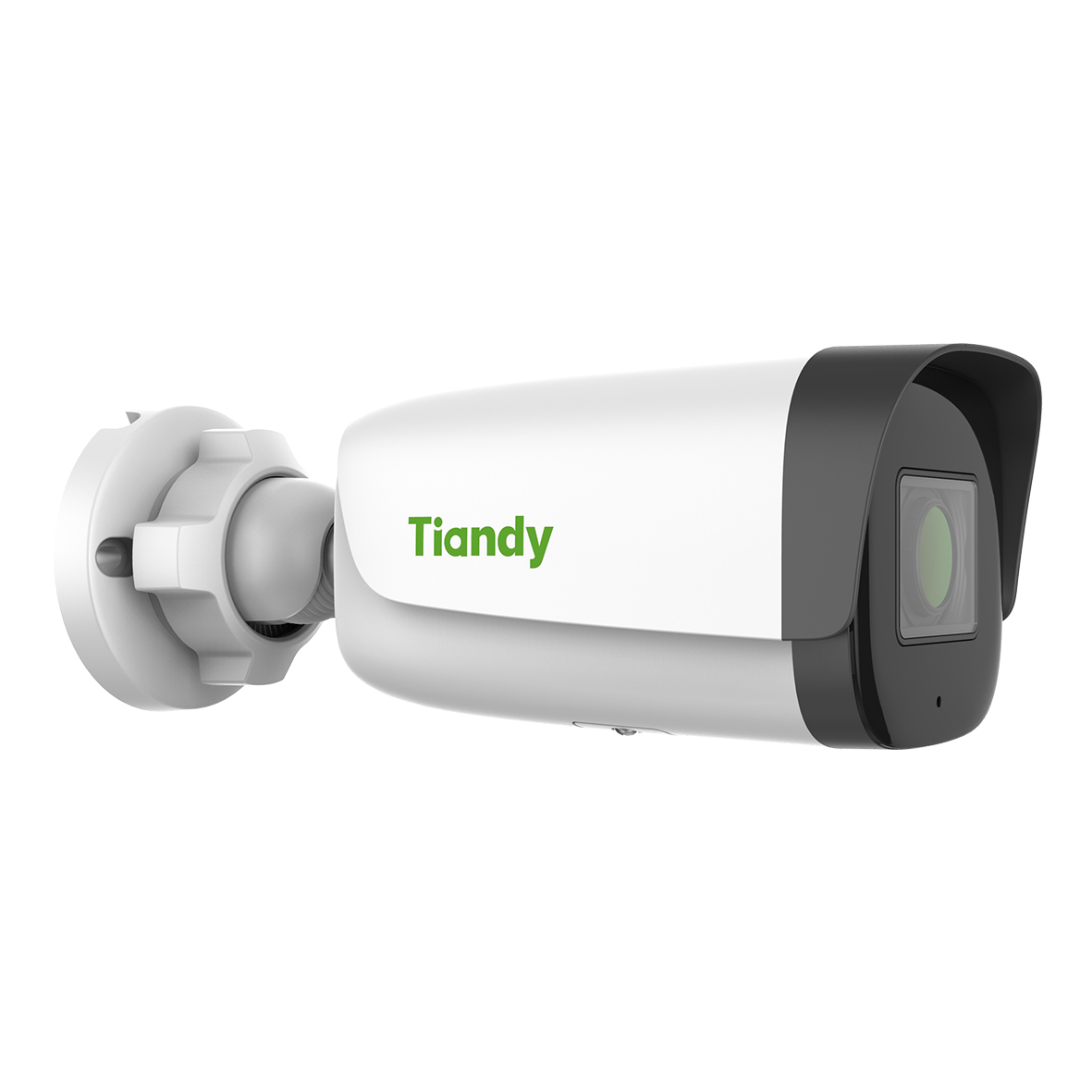

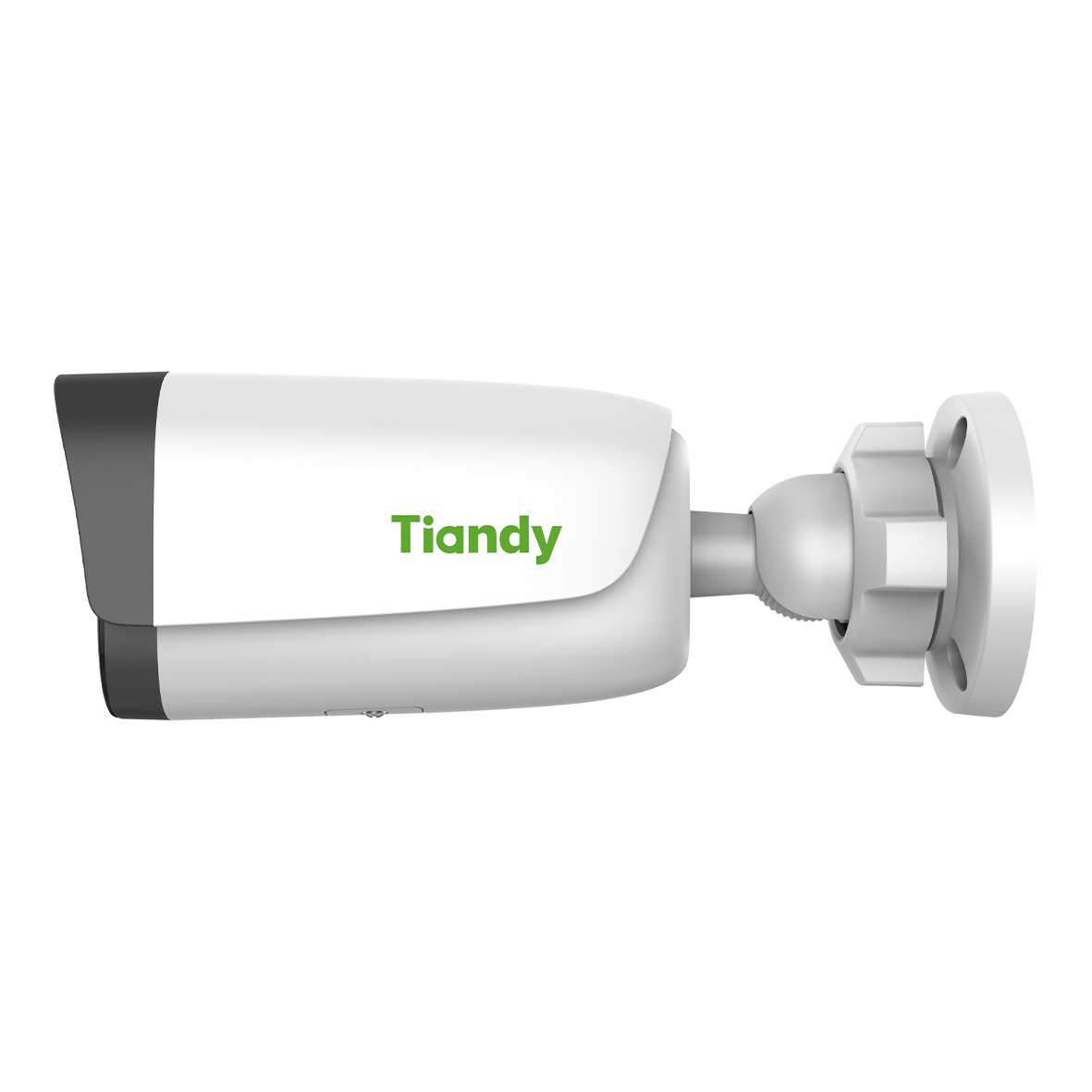

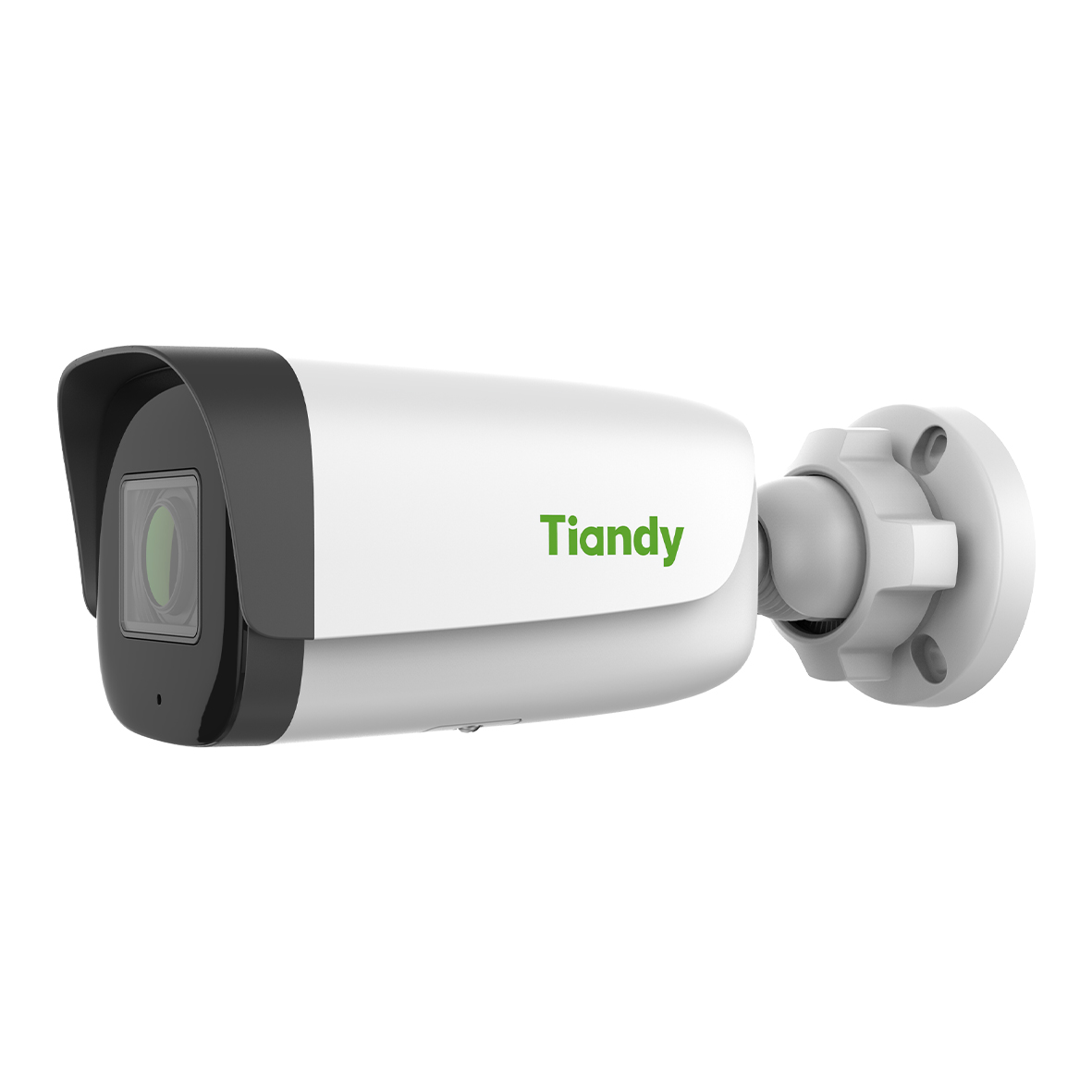

Tiandy TC-C32UN-I8/A/E/Y/2.8-12MM/V4.2 2MP Color Maker Motorized IR IP Network PoE Built-in Mic Bullet Camera
Tiandy TC-C32UN-I8/A/E/Y/2.8-12MM/V4.2 2MP Color Maker Motorized IR IP Network PoE Built-in Mic Bullet Camera - Image 2
Tiandy TC-C32UN-I8/A/E/Y/2.8-12MM/V4.2 2MP Color Maker Motorized IR IP Network PoE Built-in Mic Bullet Camera - Image 3
,

Tiandy TC-C32UN-I8/A/E/Y/2.8-12MM/V4.2 2MP Color Maker Motorized IR IP Network PoE Built-in Mic Bullet Camera

Categories: ,
  • Metal+Plastic Housing
  • Motorized Lens 2.8-12mm
  • Up to 1920×1080@30fps
  • S+265/H.265/H.264
  • Min. illumination Color: 0.02Lux@F1.6
  • Smart IR, IR Range: 80m
  • Built-in Mic, support max 512G Micro SD Card
  • Operating Conditions -30℃~60℃, 0~95% RH
  • DC12V,POE(802.3af)
  • IP67
Camera
Image Sensor 1/2.8″CMOS
Min. Illumination Color:0.02Lux@(F1.6,AGC ON),B/W:0 Lux with IR
Shutter Time 1s-1/100000s
Day & Night IR-cut filter with auto switch (ICR)
WDR DWDR
S/N >39dB
Angle Adjustment 0-360°;0-90°;0-360°
Lens
Lens Type Motorized
Focal Length 2.8-12mm
Lens Mount Φ14
Aperture Range F1.6,Fixed
Field of View 108.1°-31.3°(H);58.1°-17.6°(V);124.6°-35.9°(D)
DORI Distance W:
Detect:38.6m
Observe:15.3m
Recognize:7.7m
Identify:3.8mT:
Detect:165.5m
Observe:65.6m
Recognize:33.1m
Identify:16.5m
Illuminator
IR LEDs 4
IR Distance Up to 80m
Wavelength 850nm
White LEDs N/A
Whitelight Distance N/A
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32Kbps~4Mbps
Audio Compression G.711A/G.711U
Audio Sampling Rate 8kHz
Max. Resolution 1920×1080@30fps
Main Stream PAL: 25fps(1920×1080,1280×720,640×480,704×576)
NTSC: 30fps(1920×1080,1280×720,640×480,704×480)
Sub Stream PAL:25fps(704×576,704×288,640×360,352×288)
NTSC:30fps(704×480,704×240,640×360,352×240)
Third Stream N/A
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent
lamp/Locked white balance
ROI 8 regions
Corridor mode N/A
EIS N/A
OSD 1region;16*16/32*32/48*48
Picture Overlay N/A
Privacy Mask 4 regions
Defog Yes
Feature
Alarm Trigger Motion Detection; Mask Alarm;Disk Full;Disk R/W Error;IP Address Conflict
Linkage Method trigger recording;trigger capture;notify surveillance center
Video Analytics N/A
Rules of behavior analyse in 1 scene N/A
Early Warning(EW) N/A
Auto-Tracking N/A
Face Mode N/A
Face Capture Performance N/A
Network
ANR ANR
Protocols HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;DHCP;DNS;DDNS;Easy DDNS;NTP;QoS;IPv4;SSH;Unicast;RTSP;FTP
System Compatibility P2P(Mutually exclusive with Profile G);onvif Profile S/T/G;CGI;MIL STONE
Remote Connection ≤2
Client Easy7 Smart Client
Mobile Client EasyLive Plus
Web IE 10+;Firefox 52+;Edge 89+;Safari 11+;Chrome 57+
Interface
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O N/A
Alarm I/O N/A
Built-In Mic Yes
Built-In Speaker N/A
Reset Button Yes (built-in)
On-board storage Built-in Micro SD card slot, up to 512 GB
Additional Interfaces N/A
General
Web Client Language 19languages
Simple Chinese/Traditional
Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/He
brew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian
Operating Temperature -30°C-60°C
Operating Humidity 0-95%
Storage Temperature -30°C-60°C
Storage Humidity 0-95%(non-condensing)
Power Supply DC12V±25%,MAX 6.5W;POE 802.3af,MAX 7W
Protection Surge protection 2000V;Lightning proof 6000V;IP67
Boundary Dimensions 204(L)83.6(W)76.2(H)mm
Package Dimensions 215(L)95(W)120(H)mm
Gross Weight 0.57kg
Net Weight 0.42kg
Type Download
Datasheet
  • 2MP
  • IR range up to 80m
  • Motorized Varifocal (2.8-12mm)
  • Built in PoE
  • Built in MIC
