- Metal+plastic housing
- Up to 5MP,2592×1944@30fps
- S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
- Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
- IR range up to 30m
- Built-in Mic
- Support microSD/microSDHC/microSDXC card,up to 512GB
- Support smart surveillance
- Operating conditions -40℃~65℃(-40℉~149℉), ≤95%RH
- DC12V±25%,Max. 8.5W, PoE:IEEE 802.3af,Max. 9.5W
Fixed IR, LK Series

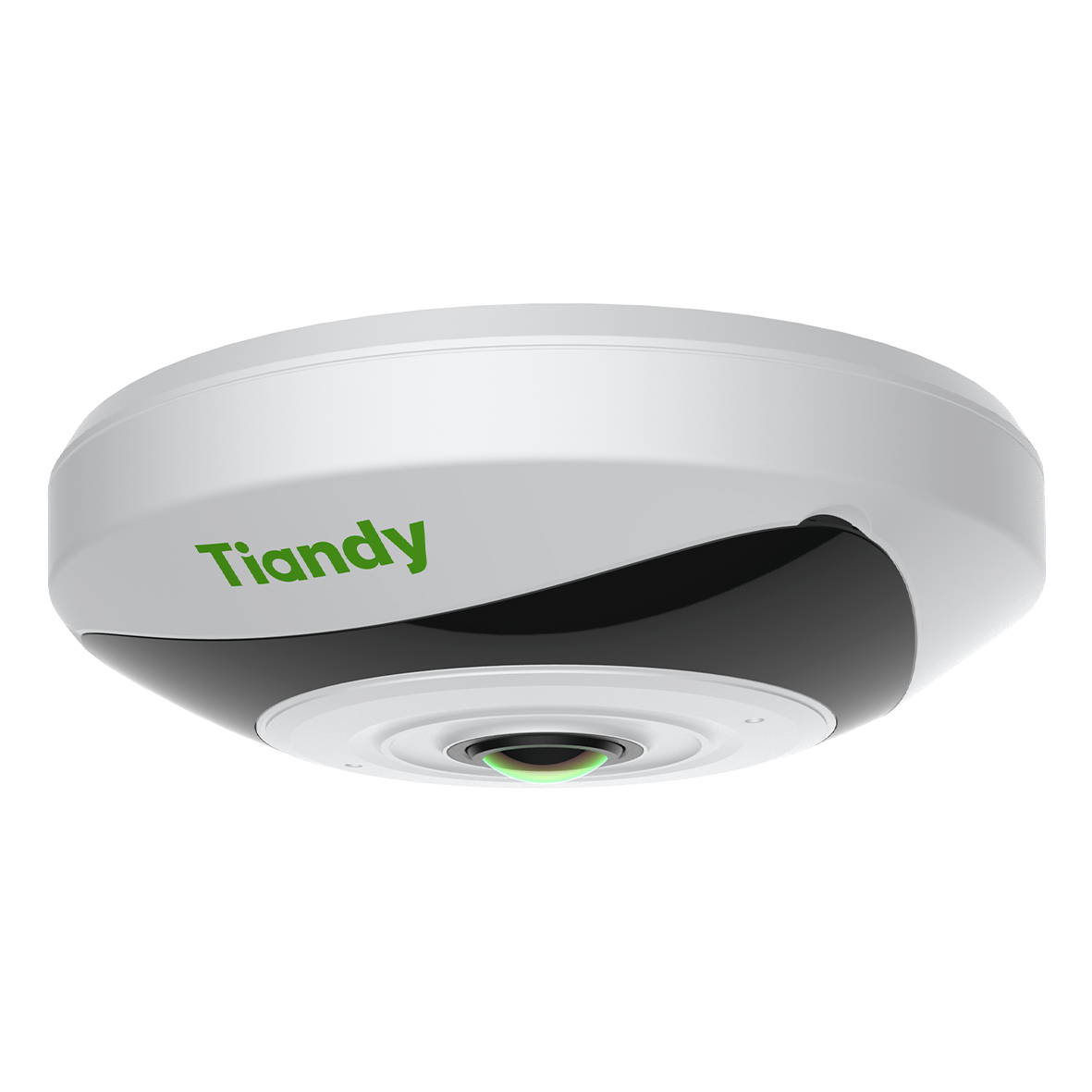

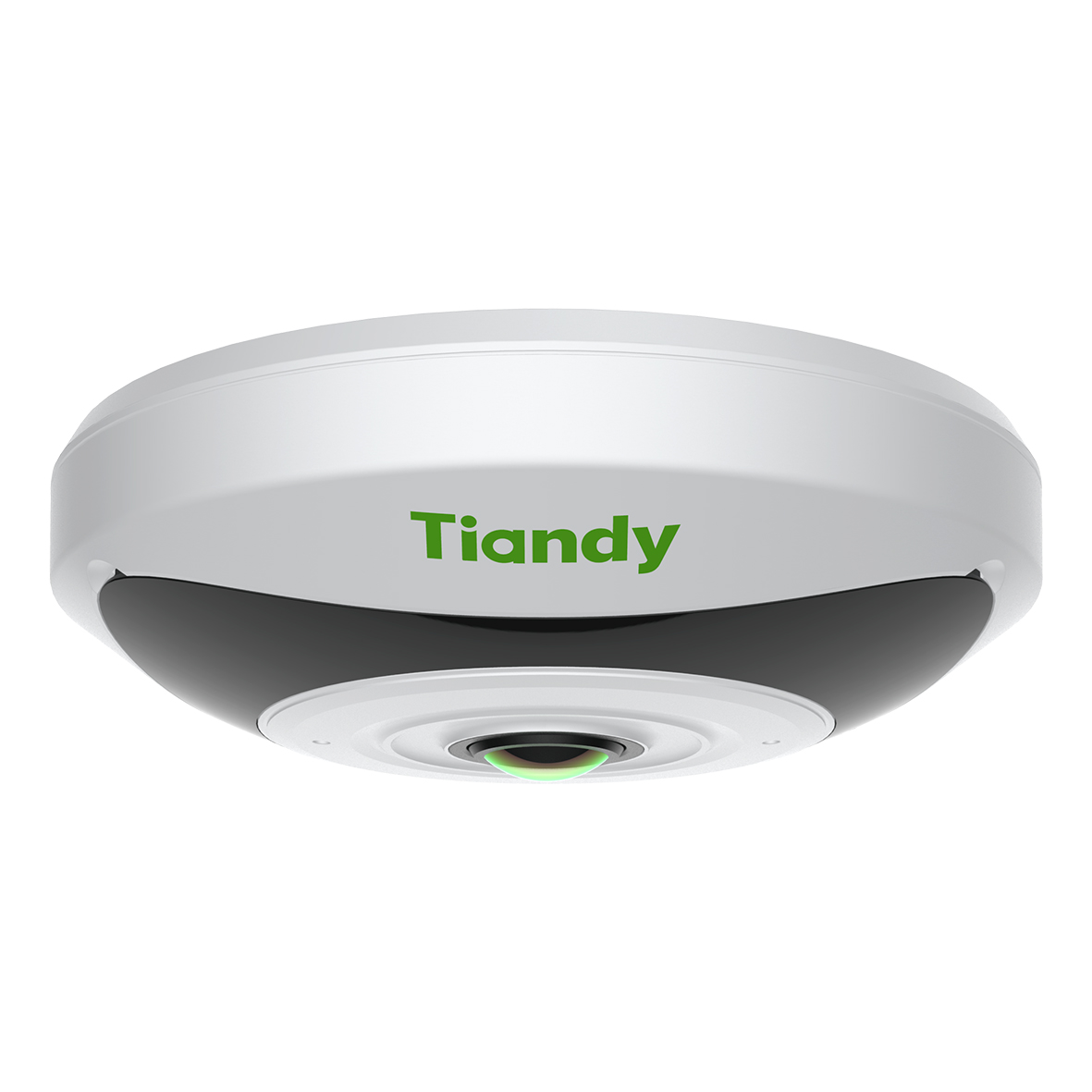

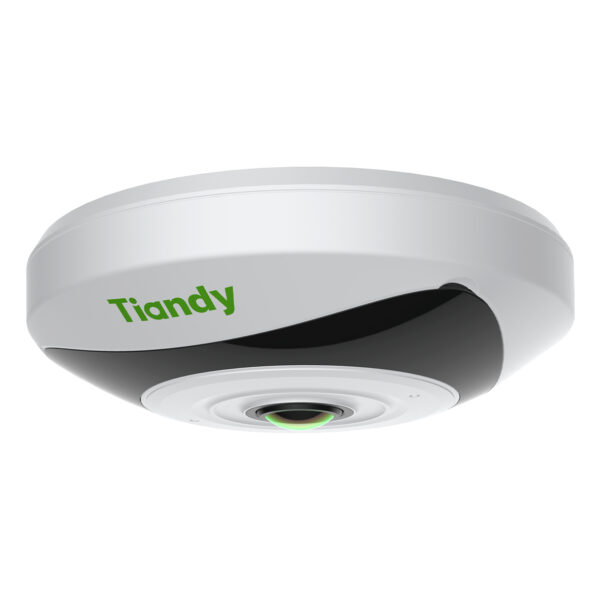

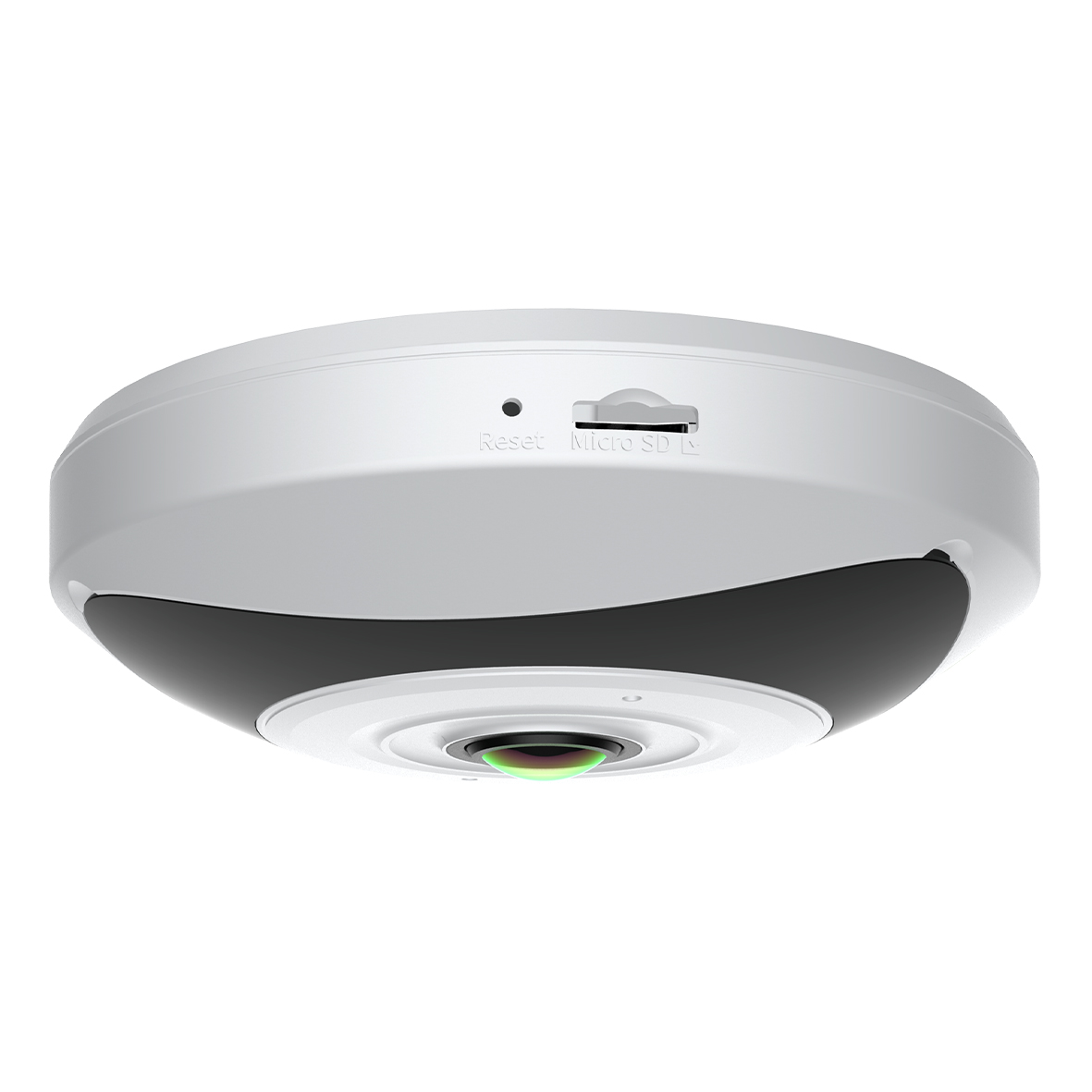

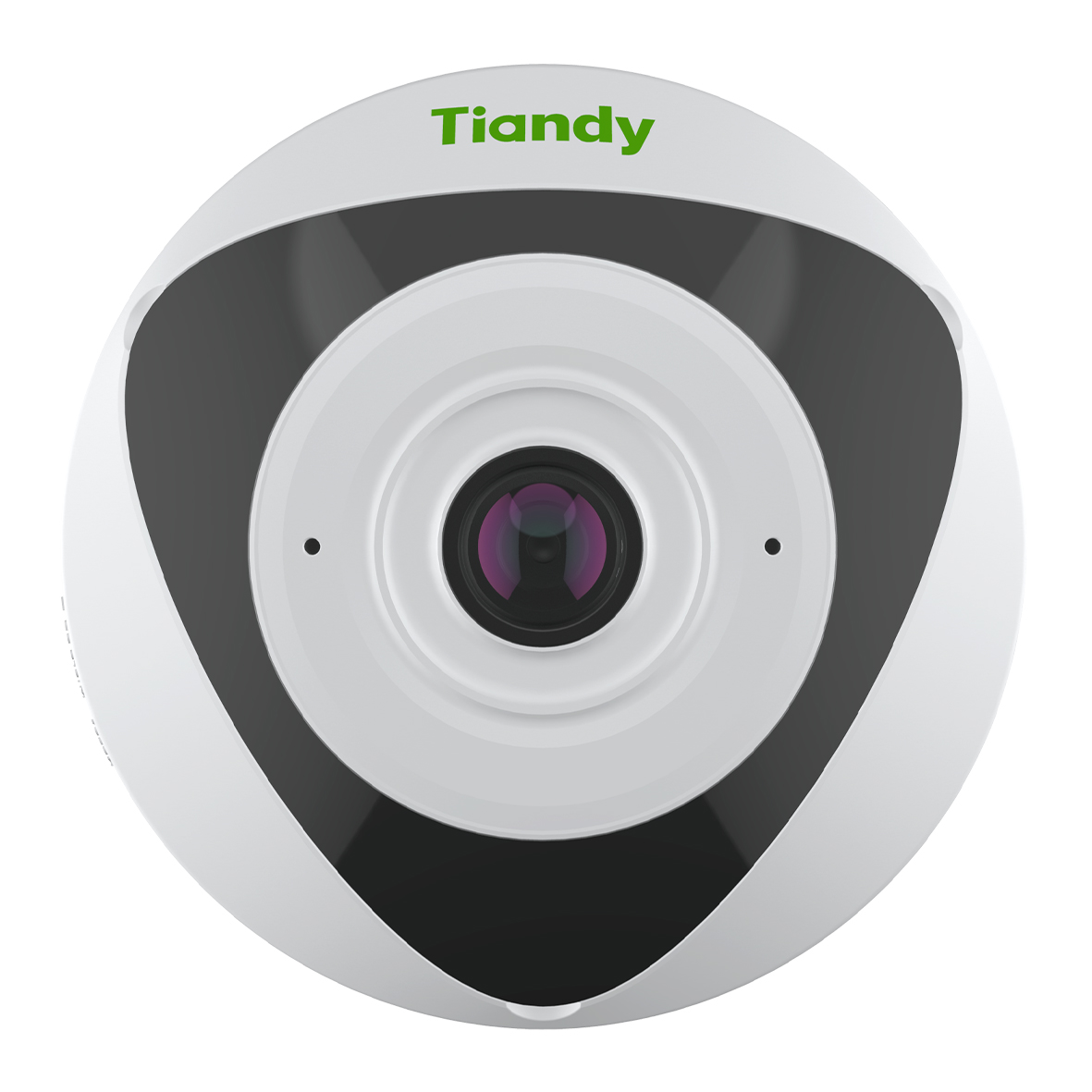

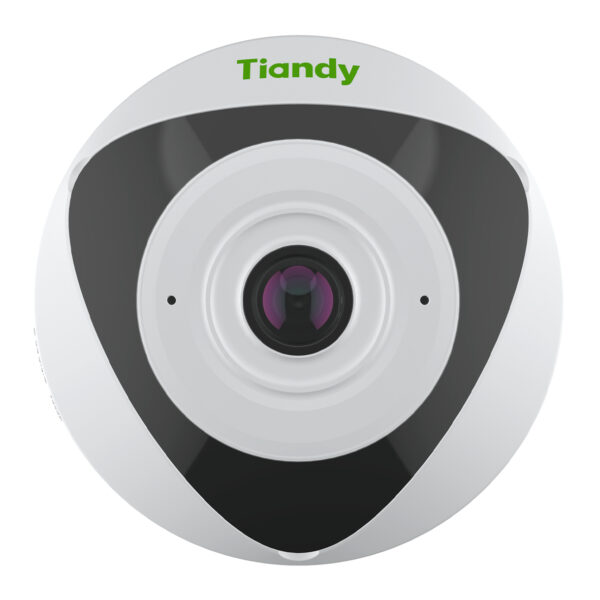

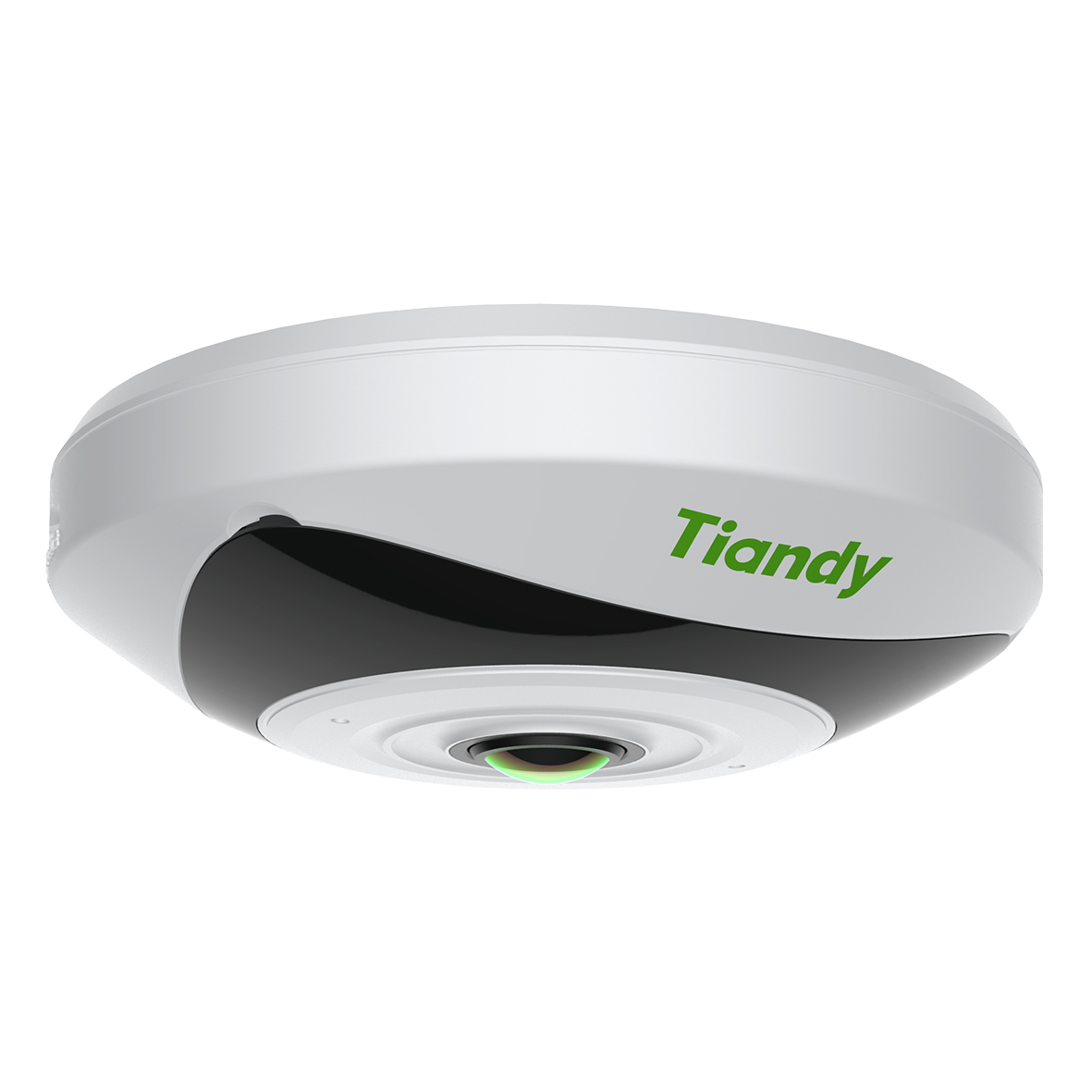

Tiandy TC-C35UV-I3/E/Y/1.4MM/V4.2 5MP IP Network PoE Built-in Mic Fisheye Camera (1.4mm)
| Camera | |||||
| Image Sensor | 1/2.7″CMOS | ||||
| Min. Illumination | Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR | ||||
| Shutter Time | 1s~1/100000s | ||||
| Day & Night | IR-cut filter with auto switch (ICR) | ||||
| Smart IR | Yes | ||||
| WDR | 120dB | ||||
| S/N | >39dB | ||||
| Lens | |||||
| Lens Type | Fixed focal lens | ||||
| Focal Length | 1.4mm | ||||
| Lens Mount | M12 | ||||
| Aperture Range | F2.0 | ||||
| Aperture Type | Fixed | ||||
| Field of View | 180°(H); 180°(V); 180°(D) | ||||
| DORI Distance | Detect:24m Observe:9m Recognize:4.8m Identify:2.5m |
||||
| Illuminator | |||||
| White LEDs | 3 | ||||
| IR Distance | Up to 30m | ||||
| Wavelength | 850nm | ||||
| Compression Standard | |||||
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG | ||||
| Video Bit Rate | 32k~16Mbps | ||||
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC | ||||
| Audio Sampling Rate | 8kHz/32kHz/48kHz | ||||
| Image | |||||
| Max. Resolution | 5MP,2592×1944@30fps | ||||
| Main Stream | PAL:25fps(2592×1944, 2560×1440, 1920×1080, 1280×720) NTSC:30fps(2592×1944, 2560×1440, 1920×1080, 1280×720) |
||||
| Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
||||
| Third Stream | PAL:25fps(1920×1080, 1280*720) NTSC:30fps(1920×1080, 1280*720) |
||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| AGC | Yes | ||||
| 3D DNR | Yes | ||||
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
||||
| ROI | 8 rectangular static areas | ||||
| OSD | Overlay of additional characters in 5 regions, 2 lines, with a maximum of 127 characters or 42 Chinese characters per region; 16*16/32*32/48*48/64*64/96*96 |
||||
| Picture Overlay | 1*200×200 size BMP 24 color bit image overlay | ||||
| Privacy Mask | 4 black static areas | ||||
| Defog | Yes | ||||
| Feature | |||||
| General Alarm | Motion Detection; Mask Alarm; Alarm Input | ||||
| Exceptions Alarm | Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception | ||||
| Linkage Method | Send Email; Trigger Sound; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output | ||||
| Video Analytics | Tripwire; Double Tripwire; Perimeter; Heatmap | ||||
| Rules of Behavior Analyse In 1 Scene |
8 | ||||
| Network | |||||
| ANR | Yes | ||||
| Protocols | HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1X; QoS; IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; RTCP; ARP; SRTP; FTP; SFTP | ||||
| System Compatibility | ONVIF(Profile S/T/G) ; SDK; CGI; Milestone; RTSP; RTMP | ||||
| Remote Connection | ≤2 | ||||
| Client | Easy7 VMS | ||||
| Mobile Client | EasyLive Plus | ||||
| Web | IE 10+; Firefox 52+; Edge 89+; Safari 11+; Chrome 57+ | ||||
| Interface | |||||
| Communication Interface | 1*RJ-45 (10/100 Base-T) | ||||
| Audio I/O | 1; 1 | ||||
| Alarm I/O | 1-ch,TTL input,3mA,3.3VDC; 1-ch,TTL output,30mA,12VDC | ||||
| Built-in Mic | Yes | ||||
| Reset Button | Yes | ||||
| On-board Storage | Support microSD/microSDHC/microSDXC card,up to 512GB | ||||
| RTC | Yes | ||||
| General | |||||
| Web Client Language | 17 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/ Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian |
||||
| Operating Temperature | -40℃~65℃(-40℉~149℉) | ||||
| Operating Humidity | ≤95%RH | ||||
| Storage Temperature | -40℃~65℃(-40℉~149℉) | ||||
| Storage Humidity | 10%~95%RH(non-condensing) | ||||
| Power Supply | DC12V±25%,Max. 8.5W; PoE:IEEE 802.3af,Max. 9.5W | ||||
| Protection | Surge4000V; ESD6000V | ||||
| Boundary Dimensions | 122(L)122(W)39(H)mm | ||||
| Package Dimensions | 140(L)140(W)120(H)mm | ||||
| Gross Weight | 0.416kg | ||||
- 5MP
- IR range up to 30m
- Built in PoE
- Built in MIC
