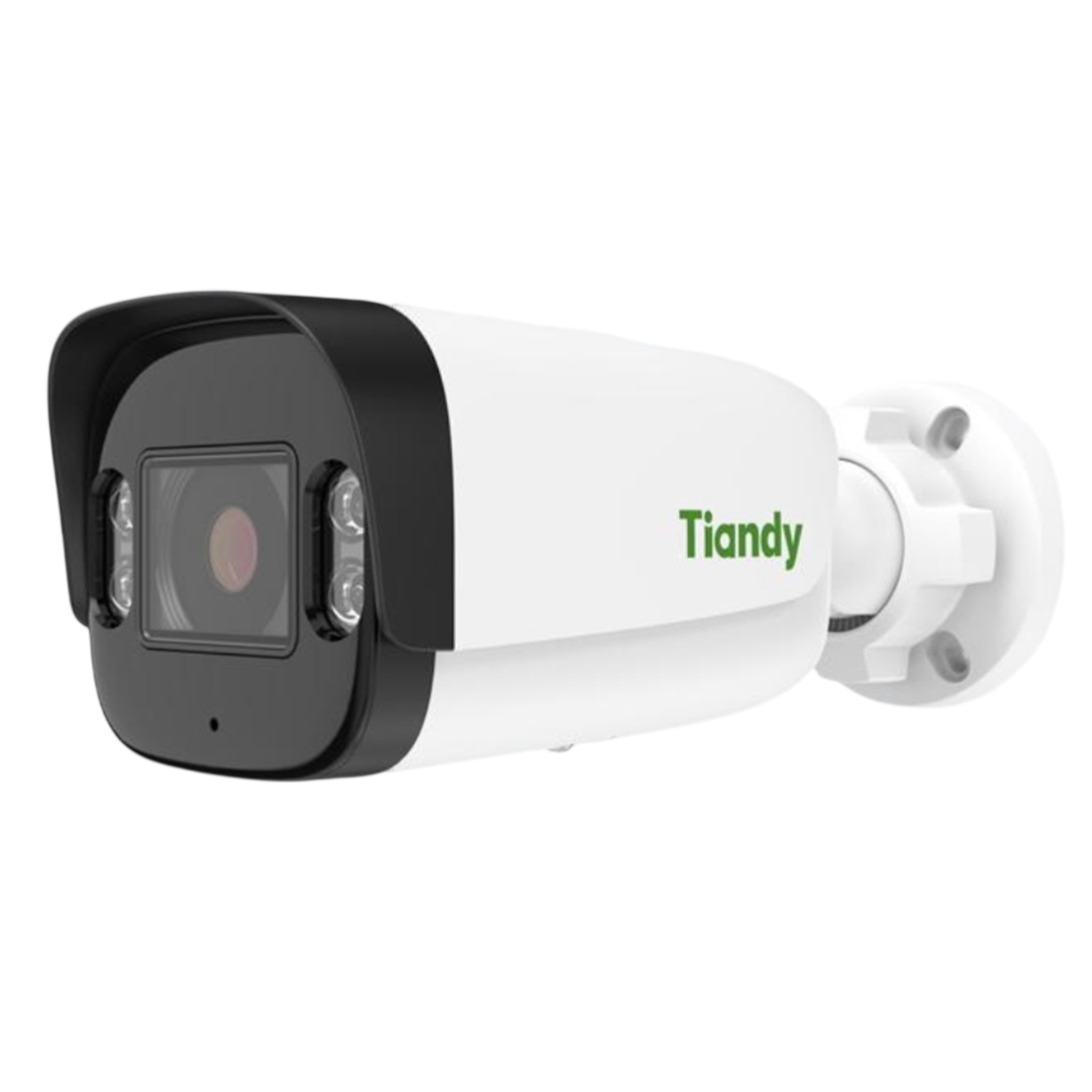

Tiandy TC-C34UV 3FRB-4 4MP Polar Day IP Network PoE Built-in Mic Bullet Camera (4mm)

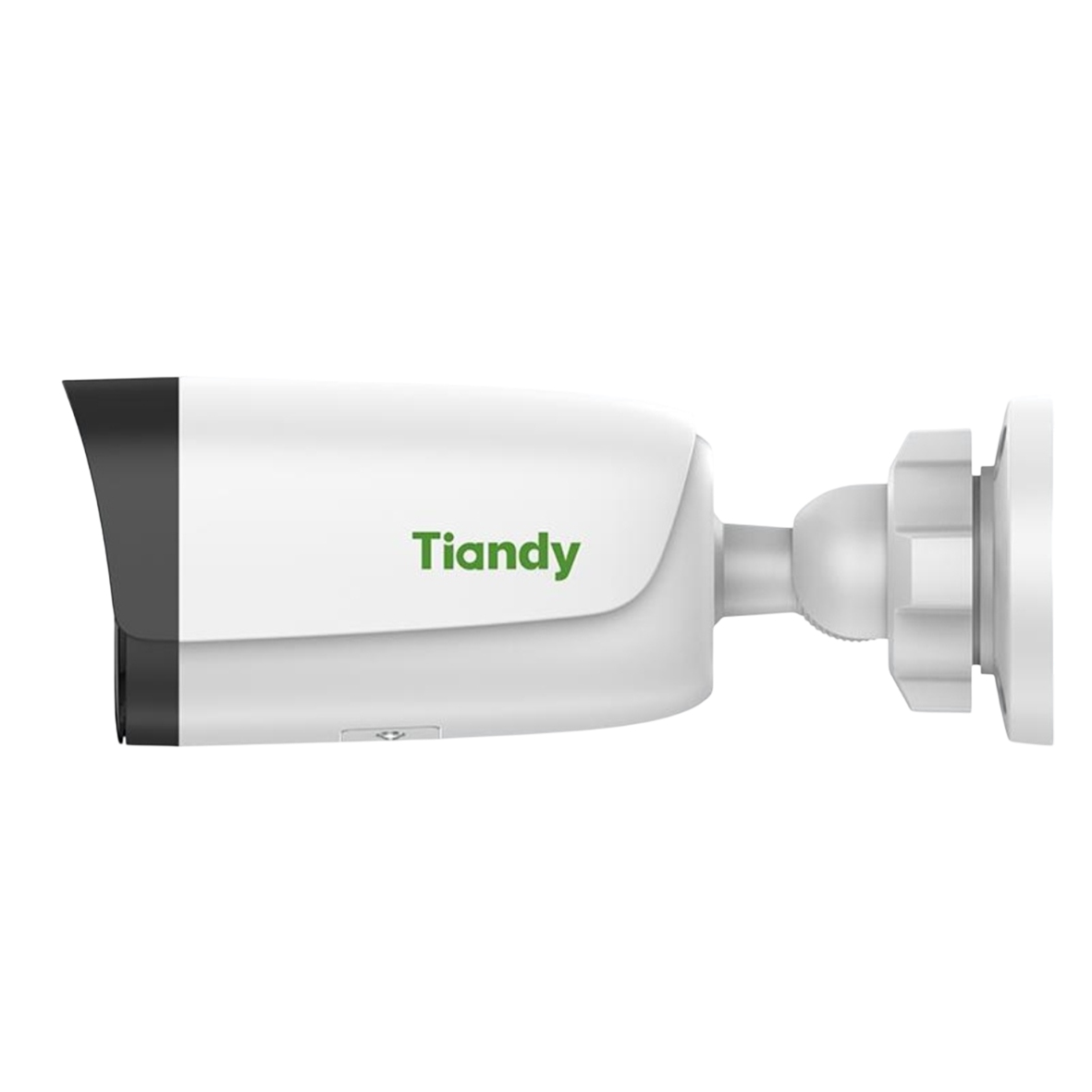

Tiandy TC-C34UV 3FRB-4 4MP Polar Day IP Network PoE Built-in Mic Bullet Camera (4mm) - Image 2
Tiandy TC-C34UV 3FRB-4 4MP Polar Day IP Network PoE Built-in Mic Bullet Camera (4mm) - Image 3
,

Tiandy TC-C34UV 3FRB-4 4MP Polar Day IP Network PoE Built-in Mic Bullet Camera (4mm)

Categories: ,
  • Metal+plastic housing
  • Up to 4MP,2688×1520@25fps
  • S+265/H.265/H.264B/H.264M/H.264H
  • Color:0.0001Lux@(F1.0,AGC ON)
  • 1×Built-in Mic
  • Support microSD/microSDHC/microSDXC card,up to 512GB
  • Support smart surveillance
  • Support human/vehicle classification
  • Operating conditions -35℃~65℃(-31℉~149℉), ≤95%RH
  • DC12V±25%,Max. 9W, PoE:IEEE 802.3af,Max. 9.6W
  • IP67
Camera
Image Sensor 1/1.8″CMOS
Min. Illumination Color:0.0001Lux@(F1.0,AGC ON)
Shutter Time 1s~1/100000s
Day & Night Fixed IR-cut
WDR 120dB
S/N >46dB
Angle Adjustment 0~360°(P); 0~80°(T); 0~360°(R)
Lens
Lens Type Fixed focal lens
Focal Length 4mm
Lens Mount M16
Aperture Range F1.0
Aperture Type Fixed
Field of View 88.8°(H); 49.0°(V); 103.1°(D)
DORI Distance Detect:80m
Observe:31.7m
Recognize:16m
Identify:8m
Illuminator
White LEDs 4
White Light Distance Up to 15m
Compression Standard
Video Compression S+265/H.265/H.264B/H.264M/H.264H
Video Bit Rate 32k~6Mbps
Audio Compression G.711A/G.711U/ADPCM_D
Audio Sampling Rate 8kHz/32kHz/48kHz
Max. Resolution 4MP,2688×1520@25fps
Main Stream PAL:25fps(2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC:24fps(2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream PAL:25fps(704×576, 704×288, 640×360, 352×288)
NTSC:24fps(704×480, 704×240, 640×360, 352×240)
BLC Yes
HLC Yes
AGC Yes
3D DNR Yes
White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock
White Balance
ROI 8 rectangular static areas
OSD Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese
characters per region; 16*16/32*32/48*48/64*64; Lattice
Privacy Mask 4 black static areas
Defog Yes
Feature
General Alarm Motion Detection; Mask Alarm
Exceptions Alarm Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server
Exception ; Network Disconnection
Linkage Method Send Email; Trigger Recording; Trigger Capture; Notify Surveillance Center
Video Analytics Human/Vehicle Classification; Tripwire; Perimeter
Rules of Behavior Analyse In 1
Scene		 2
Network
ANR Yes
Protocols RTSP; HTTP; HTTPS; TCP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; QoS; IPv4; IPv6; SSH; Unicast; Multicast; RTCP; ARP; RTP; SRTP; FTP
System Compatibility ONVIF(Profile S/T/G/M) ; SDK; CGI; Milestone
Remote Connection ≤2
Client Easy7 VMS
Mobile Client EasyLive Plus
Web IE 10+; Firefox 52+; Edge 89+; Safari 11+; Chrome 57+
Interface
Communication Interface 1×RJ-45 (10/100 Base-T)
Built-in Mic 1×Built-in Mic
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 512GB
RTC Yes
General
Web Client Language 19 languages
Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/
Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian
Operating Temperature -35℃~65℃(-31℉~149℉)
Operating Humidity ≤95%RH
Storage Temperature -35℃~65℃(-31℉~149℉)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC12V±25%,Max. 9W; PoE:IEEE 802.3af,Max. 9.6W
Protection Surge4000V; ESD6000V; IP67
Boundary Dimensions 204(L)84(W)76(H)mm
Package Dimensions  215(L)95(W)120(H)mm
Gross Weight 0.60kg
Type Download
Datasheet
  • 4MP
  • IR range up to 15m
  • Built in PoE
  • Built in MIC
