- Metal+plastic housing
- Up to 8MP,4640×1728@25fps
- S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
- Color:0.0001Lux@(F1.0,AGC ON),B/W:0Lux with IR
- Built-in Mic, Built-in Speaker
- Support microSD/microSDHC/microSDXC card,up to 512GB
- Support smart surveillance
- Support human/vehicle classification
- Operating conditions -40℃~65℃(-40℉~149℉), ≤95%RH
- DC12V±25%,Max. 11W, PoE:IEEE 802.3at,Max. 12W
- IP67
LK Series, Polar Day

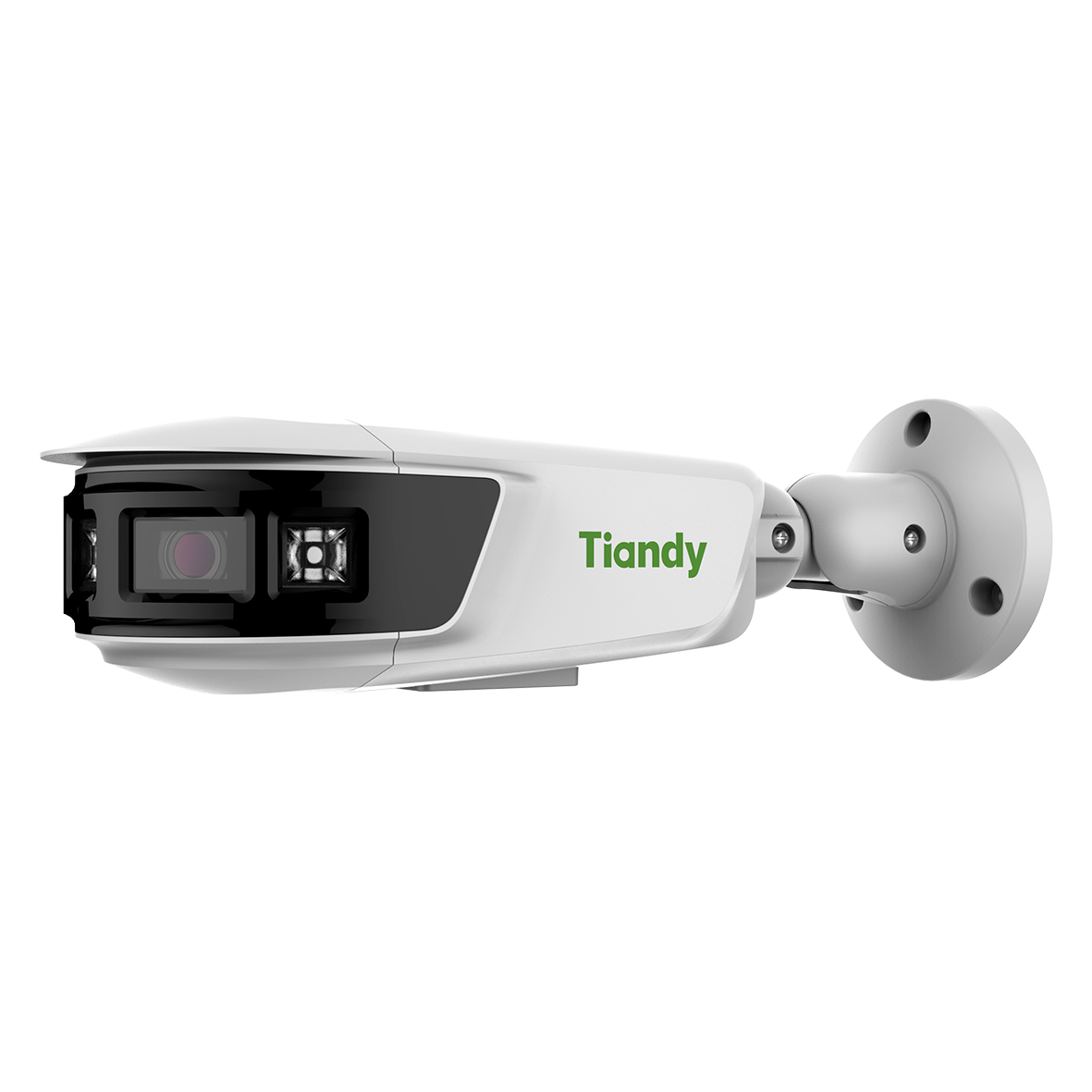

Tiandy TC-C382V-W/E/Y/S/H/2.8MM 8MP Polar Day Panoramic IP Network PoE Two Way Talk Built-in Speaker Built-in Mic Bullet Camera (2.8mm)
| Camera | |||||
| Image Sensor | 1/2.7″CMOS | ||||
| Min. Illumination | Color:0.0001Lux@(F1.0,AGC ON),B/W:0Lux with IR | ||||
| Shutter Time | 1s~1/100000s | ||||
| Day & Night | NO IR-cut | ||||
| WDR | 120dB | ||||
| S/N | >46dB | ||||
| Angle Adjustment | 0~360°(P); 0~90°(T); 0~360°(R) | ||||
| Lens | |||||
| Lens Type | Fixed | ||||
| Focal Length | 2.8mm | ||||
| Lens Mount | M12 | ||||
| Aperture Range | F1.0 | ||||
| Aperture Type | Fixed | ||||
| Field of View | 180°(H)±10°; 65°(V)±5° | ||||
| DORI Distance | Detect:56m Observe:22m Recognize:11m Identify:5.6m |
||||
| Illuminator | |||||
| White LEDs | 3 | ||||
| Whitelight Distance | Up to 15m | ||||
| Compression Standard | |||||
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG | ||||
| Video Bit Rate | 32k~16Mbps | ||||
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC | ||||
| Audio Sampling Rate | 8kHz/32kHz/48kHz | ||||
| Image | |||||
| Max. Resolution | 8MP,4640×1728@25fps | ||||
| Main Stream | 25fps(4640×1728, 4096×1520) NTSC:24fps(4640×1728, 4096×1520) |
||||
| Sub Stream | PAL:25fps(1408×528) NTSC:24fps(1408×528) |
||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| AGC | Yes | ||||
| 3D DNR | Yes | ||||
| White Balance | Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance | ||||
| ROI | 8 rectangular static areas | ||||
| OSD | Overlay of additional characters in 5 regions, 2 lines, with a maximum of 127 characters or 42 Chinese characters per region; 16*16/32*32/48*48/64*64/96*96/128*128 |
||||
| Picture Overlay | 1*200×200 size BMP 24 color bit image overlay | ||||
| Privacy Mask | 4 black static areas | ||||
| Defog | Yes | ||||
| Feature | |||||
| General Alarm | Motion Detection; Mask Alarm; Alarm Input | ||||
| Exceptions Alarm | Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception | ||||
| Linkage Method | Send Email; Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output | ||||
| Video Analytics | Human/Vehicle Classification; Tripwire; Perimeter; Video Abnormal; Audio Abnormal | ||||
| Rules of Behavior Analyse In 1 Scene |
8 | ||||
| Early Warning(EW) | Yes | ||||
| Network | |||||
| ANR | Yes | ||||
| Protocols | HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1X; QoS; IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; RTCP; ARP; RTP; SRTP; FTP; SFTP | ||||
| System Compatibility | ONVIF(Profile S/T/G/M) ; SDK; CGI; Milestone; RTSP; RTMP | ||||
| Remote Connection | ≤7 | ||||
| Client | Easy7 VMS | ||||
| Mobile Client | EasyLive Plus | ||||
| Web | IE 10+; Firefox 52+; Edge 89+; Safari 11+; Chrome 57+ | ||||
| Interface | |||||
| Communication Interface | 1*RJ-45 (10/100 Base-T) | ||||
| Audio I/O | 1; 1 | ||||
| Alarm I/O | 1-ch,TTL input,3mA,3.3VDC; 1-ch,TTL output,30mA,12VDC | ||||
| Built-In Mic | Yes | ||||
| Built-In Speaker | Yes | ||||
| Reset Button | Yes | ||||
| On-board storage | microSD/microSDHC/microSDXC card,up to 512GB | ||||
| RTC | Yes | ||||
| General | |||||
| Web Client Language | 19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/ Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian |
||||
| Operating Temperature | -40℃~65℃(-40℉~149℉) | ||||
| Operating Humidity | ≤95%RH | ||||
| Storage Temperature | -40℃~65℃(-40℉~149℉) | ||||
| Storage Humidity | 10%~95%RH(non-condensing) | ||||
| Power Supply | DC12V±25%,Max. 11W; PoE:IEEE 802.3at,Max. 12W | ||||
| Protection | Surge4000V; ESD6000V; IP67 | ||||
| Boundary Dimensions | 294(L)116(W)72(H)mm | ||||
| Package Dimensions | 360(L)150(W)170(H)mm | ||||
| Gross Weight | 1.1kg | ||||
- 8MP
- IR range up to 15m
- Built in PoE
- Built in Speaker
- Built in MIC
