- Metal+plastic housing
- Up to 6MP,3200×1800@25fps
- S+265/H.265/H.264B/H.264M/H.264H
- Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
- IR range up to 30m
- Built-in Mic
- Operating conditions -30℃~60℃(-22℉~140℉), ≤95%RH
- DC12V±25%,Max. 7W; PoE:IEEE 802.3af,Max. 8W
- IP67
Color Maker, SK Series

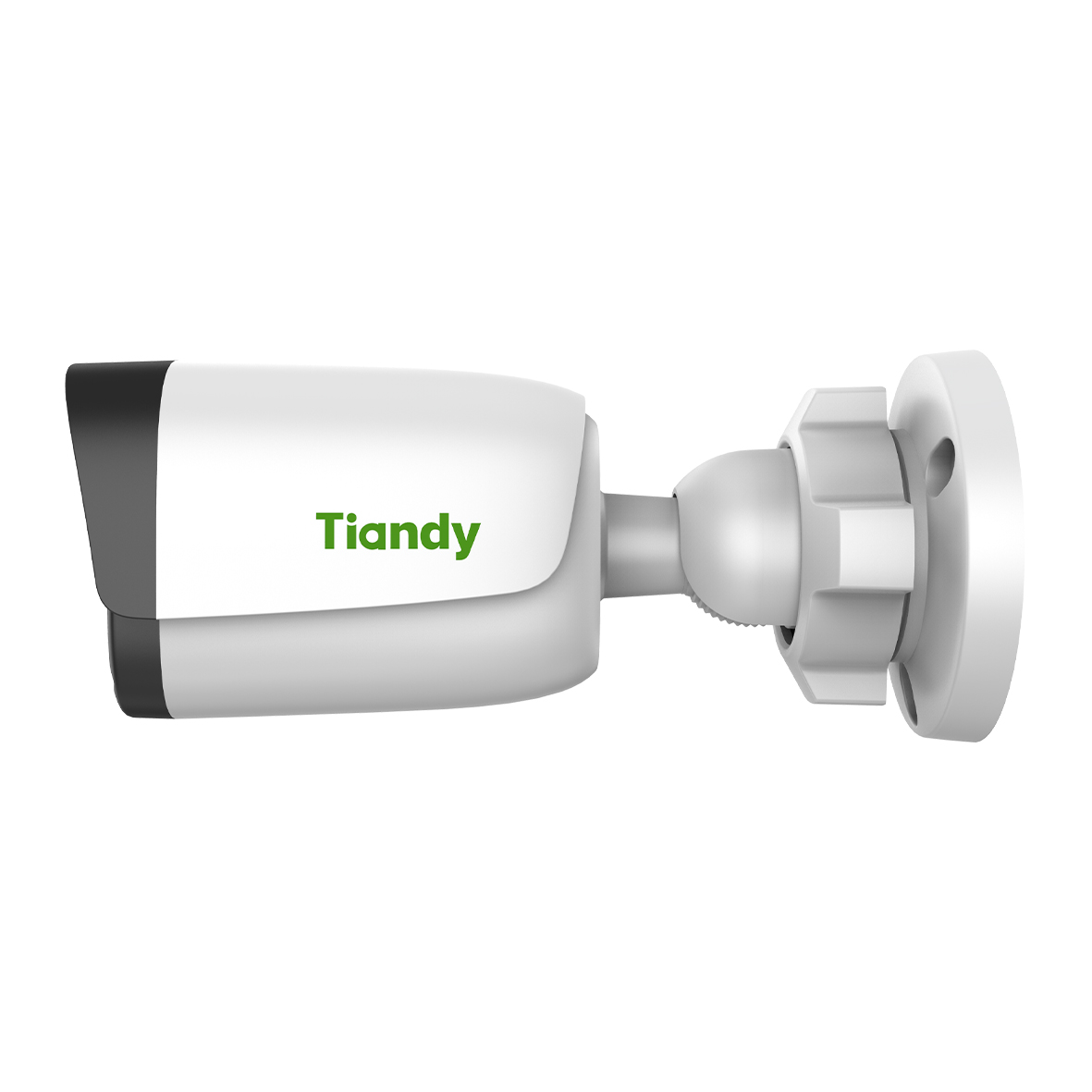

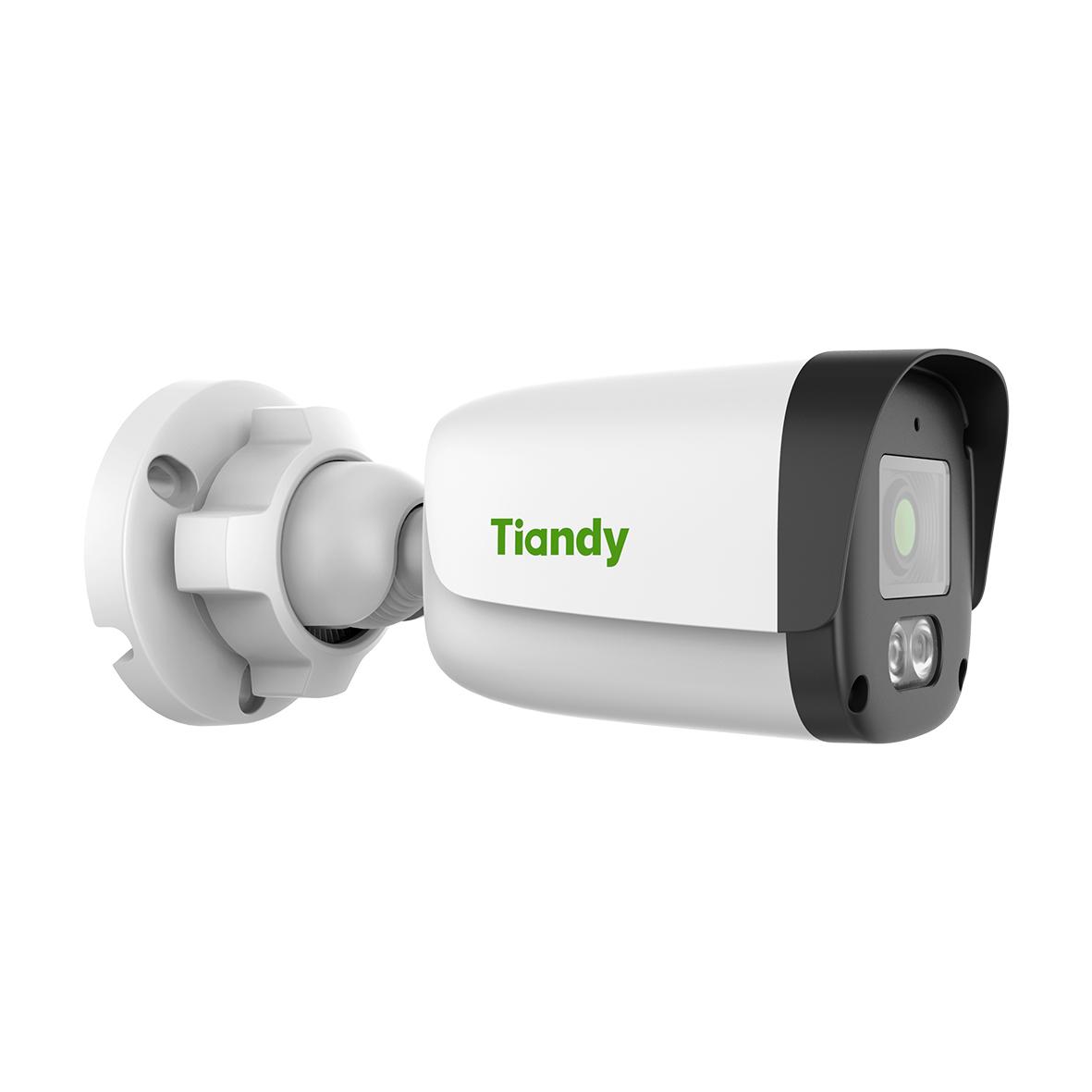

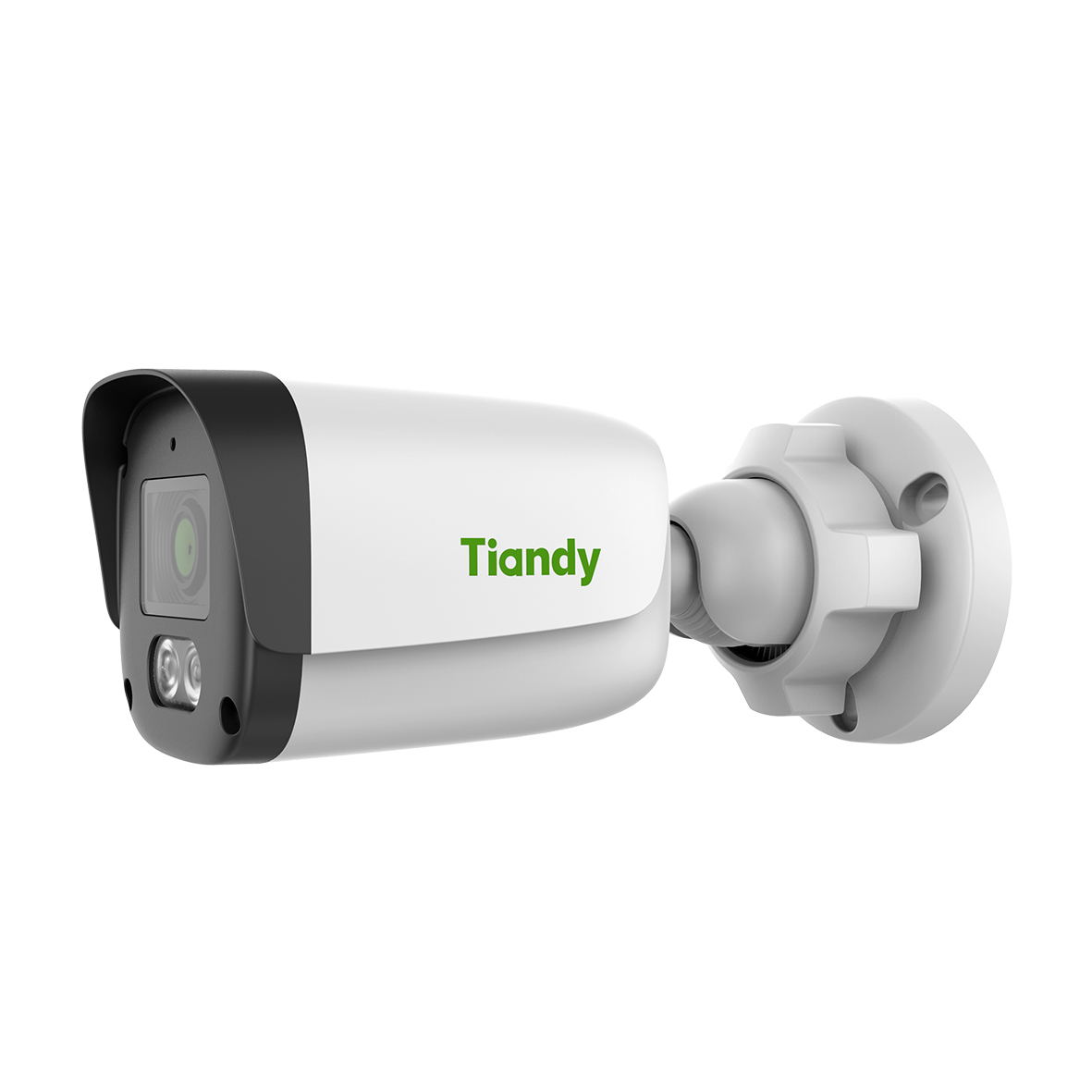

Tiandy TC-C36QN 2ENA-28 6MP Color Maker IP Network PoE Built-in Mic Bullet Camera (2.8mm)
| Camera | |||||
| Image Sensor | 1/2.7″CMOS | ||||
| Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR | ||||
| Shutter Time | 1s~1/100000s | ||||
| Day & Night | IR-cut filter with auto switch (ICR) | ||||
| WDR | DWDR | ||||
| S/N | >40dB | ||||
| Angle Adjustment | 0~360°(P); 0~80°(T); 0~360°(R) | ||||
| Lens | |||||
| Lens Type | Fixed focal lens | ||||
| Focal Length | 2.8mm / 4mm | ||||
| Lens Mount | M12 | ||||
| Aperture Range | F1.6,Fixed | ||||
| Field of View | 2.8mm: 92.8°(H); 52.2°(V); 106.5°(D) 4mm: 81.6°(H); 43.1°(V); 94.2°(D) |
||||
| DORI Distance | 2.8mm: Detect:56m Observe:22.2m Recognize:11.2m Identify:5.6m4mm: Detect:80.0m Observe:31.7m Recognize:16.0m Identify:8.0m |
||||
| Illuminator | |||||
| IR LEDs | 2 | ||||
| IR Distance | Up to 30m | ||||
| Wavelength | 850nm | ||||
| White LEDs | 2 | ||||
| Whitelight Distance | Up to 15m | ||||
| Compression Standard | |||||
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H | ||||
| Video Bit Rate | 32Kbps~6Mbps | ||||
| Audio Compression | G.711A/G.711U | ||||
| Audio Sampling Rate | 8kHz | ||||
| Image | |||||
| Max. Resolution | 6MP,3200×1800@25fps | ||||
| Main Stream | PAL: 25fps(3200×1800, 1920×1080, 1280×720) NTSC:24fps(3200×1800, 1920×1080, 1280×720) |
||||
| Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:24fps(704×480, 704×240, 640×360, 352×240) |
||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| AGC | Yes | ||||
| 3D DNR | Yes | ||||
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance | ||||
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48/64*64 | ||||
| Privacy Mask | 4 black static areas | ||||
| Defog | Yes | ||||
| Feature | |||||
| General Alarm | Motion Detection | ||||
| Exceptions Alarm | IP Address Conflict | ||||
| Linkage Method | Trigger Warm light; Trigger Capture | ||||
| Video Analytics | Smart Motion Detection (Human/Vehicle Classification ) | ||||
| Network | |||||
| Protocols | HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; SSH Unicast | ||||
| System Compatibility | ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP | ||||
| Remote Connection | ≤2 | ||||
| Client | Easy7 VMS | ||||
| Mobile Client | EasyLive Plus | ||||
| Web | IE 10+; Firefox 52+; Edge 89+; Safari 11+; Chrome 57+ | ||||
| Interface | |||||
| Communication Interface | 1*RJ-45 (10/100 Base-T) | ||||
| Built-in Mic | Yes | ||||
| General | |||||
| Web Client Language | 12 languages English/Spanish/Italian/Turkish/Russian/Thai/French/Polish/Arabic/Vietnamese/Portuguese/ Japanese |
||||
| Operating Temperature | -30℃~60℃(-22℉~140℉) | ||||
| Operating Humidity | ≤95%RH | ||||
| Storage Temperature | -30℃~60℃(-22℉~140℉) | ||||
| Storage Humidity | Humidity 10%~95%RH(non-condensing) | ||||
| Power Supply | DC12V±25%,Max. 7W; PoE:IEEE 802.3af,Max. 8W | ||||
| Protection | Surge4000V; ESD6000V; IP67 | ||||
| Boundary Dimensions | 164(L)73(W)73(H)mm | ||||
| Package Dimensions | 180(L)90(W)95(H)mm | ||||
| Gross Weight | 0.3Kg | ||||
- 6MP
- IR range up to 30m
- Built in PoE
- Built in MIC
