- Metal+plastic housin
- Up to Max. Resolution
- S+265/H.265/H.264B/H.264M/H.264H
- Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
- IR Range 30m
- Built-in Mic
- Support Smart surveillance
- Operating Conditions -30°C~60°C(No turning on the light), Humidity 95% or less (no condensation)
- DC12V±25%,MAX 6.5W, POE 802.3af,MAX 7W
Color Maker, SK Series

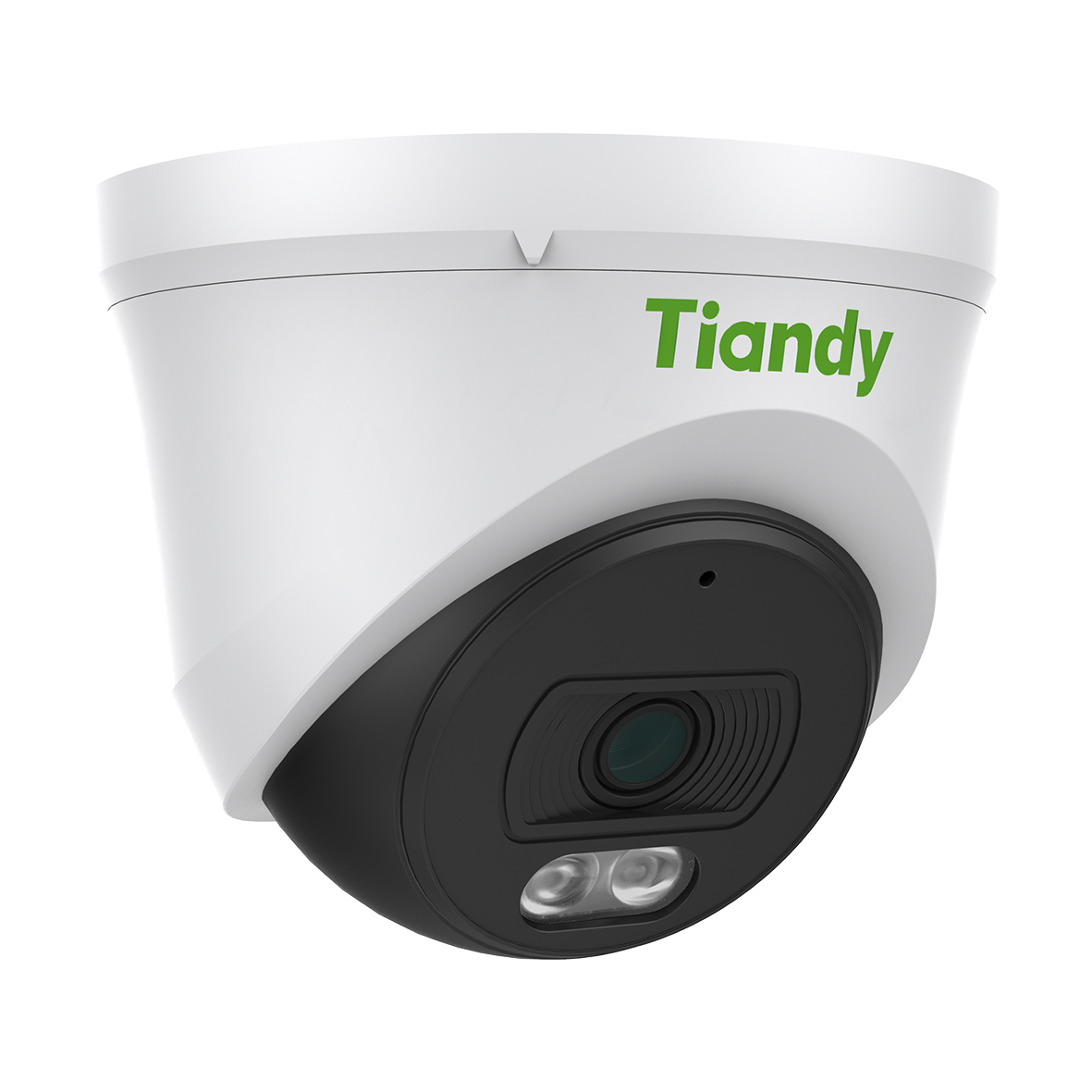

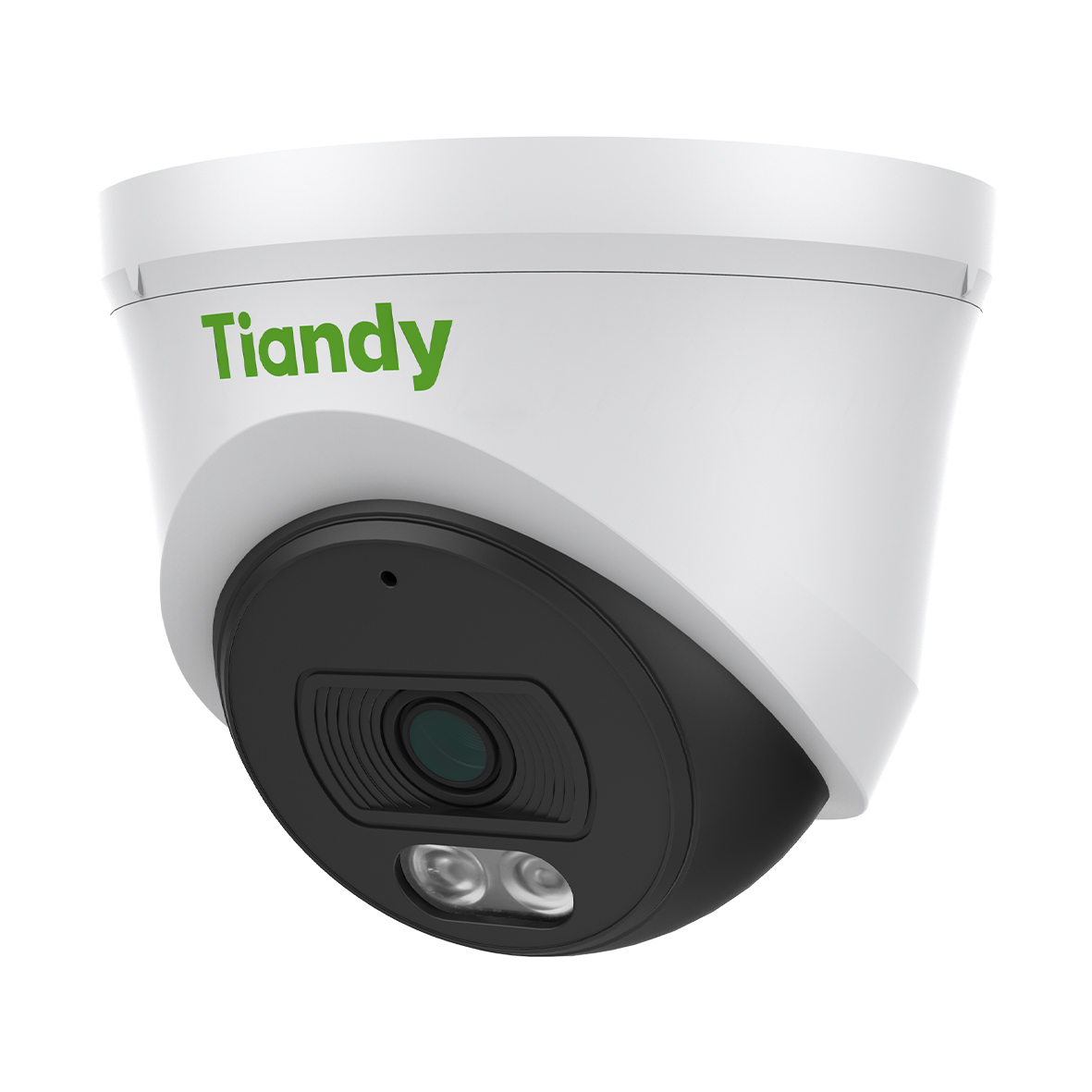

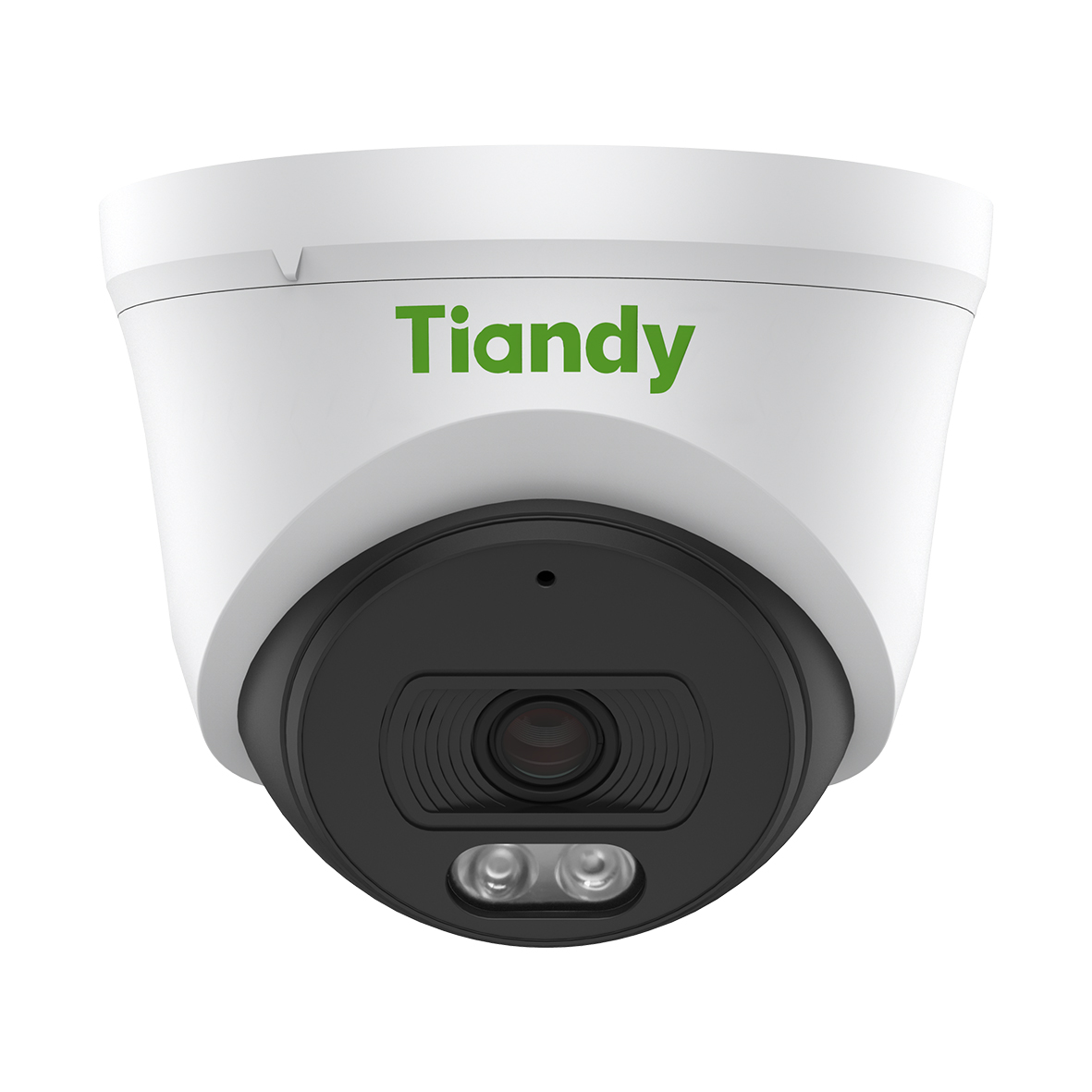

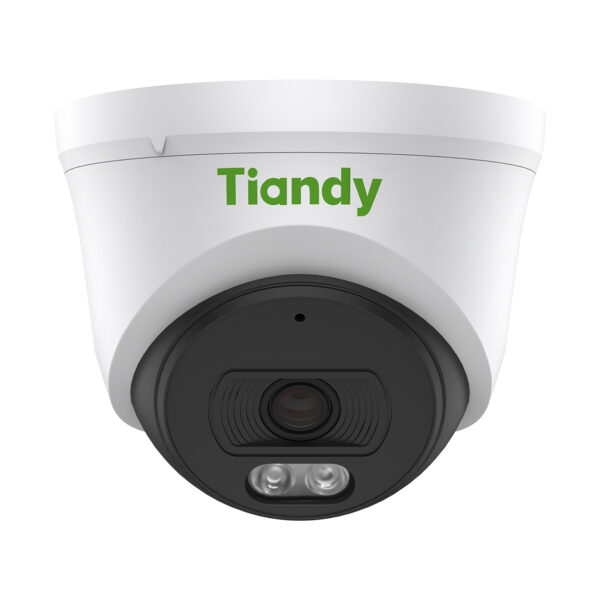

Tiandy TC-C34XN-I3W/E/Y/2.8MM/V4.2 4MP Color Maker IP Network PoE Built-in Mic Dome Camera (2.8mm)
| Camera | |||||
| Image Sensor | 1/2.9″CMOS | ||||
| Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR | ||||
| Shutter Time | 1s-1/100000s | ||||
| Day & Night | IR-cut filter with auto switch (ICR) | ||||
| WDR | 120dB | ||||
| S/N | >40dB | ||||
| Angle Adjustment | 0~340°(P); 0~75°(T); 0~360°(R) | ||||
| Lens | |||||
| Lens Type | Fixed focal lens | ||||
| Focal Length | 2.8mm | ||||
| Lens Mount | M12 | ||||
| Aperture Range | F1.6,Fixed | ||||
| Field of View | 100.1°(H); 54.3°(V); 113.9°(D) | ||||
| DORI Distance | Detect:56.0m Observe:22.2m Recognize:11.2m Identify:5.6m |
||||
| Illuminator | |||||
| IR LEDs | 2 | ||||
| IR Distance | Up to 30m | ||||
| Wavelength | 850nm | ||||
| White LEDs | 2 | ||||
| Whitelight Distance | Up to 15m | ||||
| Compression Standard | |||||
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H | ||||
| Video Bit Rate | 32Kbps~6Mbps | ||||
| Audio Compression | G.711A/G.711U/ADPCM_D | ||||
| Audio Sampling Rate | 8kHz/32kHz/48kHz | ||||
| Image | |||||
| Main Stream | PAL:25fps(2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:24fps(2688×1520, 2560×1440), 30fps(2304×1296, 1920×1080, 1280×720) |
||||
| Sub Stream | PAL:25fps(704×576, 704×288, 352×288, 640×360) NTSC:30fps(704×480, 704×240, 352×240, 640×360) |
||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| AGC | Yes | ||||
| 3D DNR | Yes | ||||
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
||||
| ROI | 8 rectangular static areas | ||||
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48/64*64 | ||||
| Privacy Mask | 4 black static areas | ||||
| Defog | Yes | ||||
| Feature | |||||
| Alarm Trigger | Motion Detection; Mask Alarm; IP Address Conflict | ||||
| Linkage Method | trigger warmlight; trigger capture | ||||
| Video Analytics | Tripwire; Perimeter | ||||
| Rules of behavior analyse in 1 scene |
2 | ||||
| Network | |||||
| Protocols | HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; QoS; IPv4; SSH; Unicast; RTSP; FTP |
||||
| System Compatibility | P2P(Mutually exclusive with Profile G); ONVIF Profile S/T; CGI; Milestone | ||||
| Remote Connection | ≤2 | ||||
| Client | Easy7 Smart Client | ||||
| Mobile Client | EasyLive Plus | ||||
| Interface | |||||
| Communication Interface | 1*RJ-45,10/100 Mbps self-adaptive Ethernet port | ||||
| General | |||||
| Web Client Language | 19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian |
||||
| Operating Temperature | -30℃~60℃(No turning on the light) | ||||
| Operating Humidity | Humidity 95% or less (no condensation) | ||||
| Storage Temperature | -30℃~60℃ | ||||
| Storage Humidity | Humidity 95% or less (no condensation) | ||||
| Power Supply | DC12V±25%,MAX 6.5W; POE IEEE802.3af,MAX 7W | ||||
| Protection | Surge4000V | ||||
| Boundary Dimensions | 117(L)117(W)96(H)mm | ||||
| Package Dimensions | 140(L)140(W)120(H)mm | ||||
| Gross Weight | 0.35Kg | ||||
- 4MP
- IR range up to 30m
- Built in PoE
- Built in MIC
